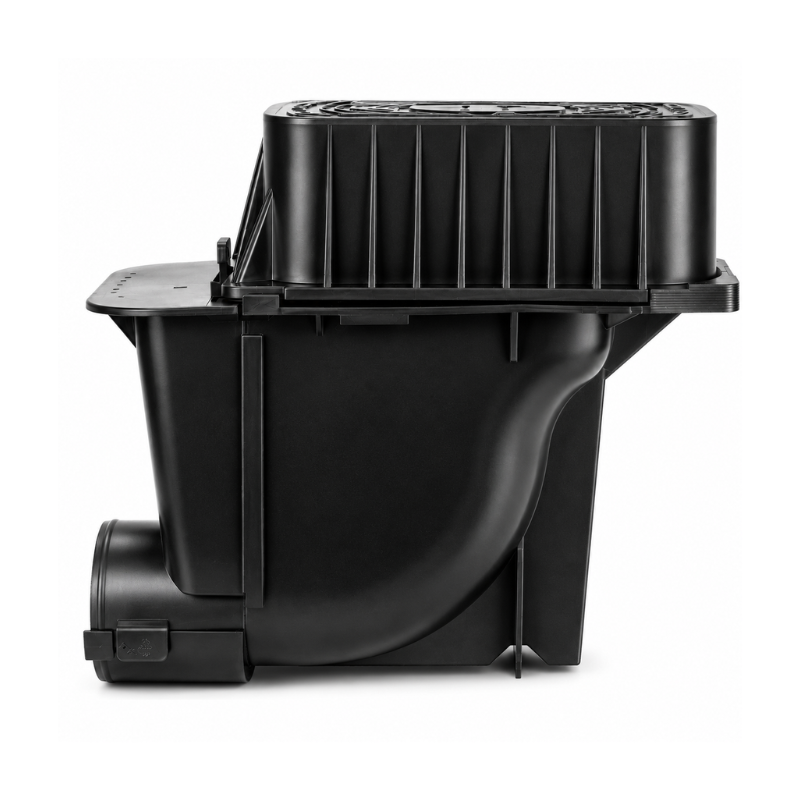

Toby Box Universal Modular Chamber
The Toby Box is a durable underground storage box designed for housing Microducts and Splice Enclosures in FTTX installations. Featuring an unbranded lid for easy access at any time, it serves as a demarcation point at the customer boundary, allowing for future connections or functioning as a maintenance access point.
Key Features & Benefits:
- Optimised for Narrow Trenching – Space-saving narrow footprint for easy installation.
- 250mm Depth with Optimized Radius – Facilitates smooth microduct routing.

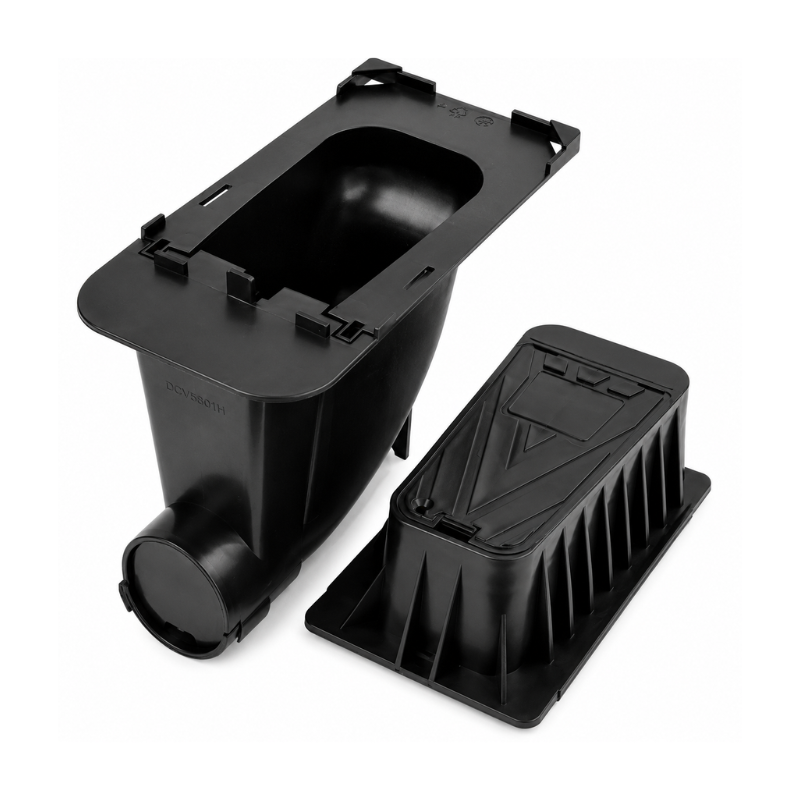

- Modular Construction – Special design allows the box to be broken into four components, enabling microduct installation or removal without disconnection.
- High Load Bearing Strength – Withstands up to 5.5kN, exceeding Grade C lid requirements under BS 5834-2 testing.
- Secure & Accessible – Can house IP65/IP68 splice enclosures for fibre drop cable splicing.
- Scalable FTTX Deployment – Accommodates up to two microduct couplers, supporting multiple subscriber connections.
- Cost-Effective Solution – Alternative to traditional access chambers with lower installation and maintenance costs.
- Unbranded Lid – Supplied without branding; custom nameplates available upon request.
Technical Specifications:
- Dimensions: 256mm W x 255mm L x 128mm H
- Material: Polypropylene (100% recyclable)
- Weight: 700g
- Temperature Range: -45°C to 90°C (Operation, Storage, Installation)
- Load Capacity: 5.5kN (BS 5834-2 compliant)
- Subscriber Capacity: Supports up to 2 microduct couplers
|
