Telescopic Cable Raising Prop - 6.2m

Telescopic Cable Raising Prop.
Product code: W2440
 Call or Request Quote
£400.00 exc VAT
(0)
Request for quote

Description

Description:

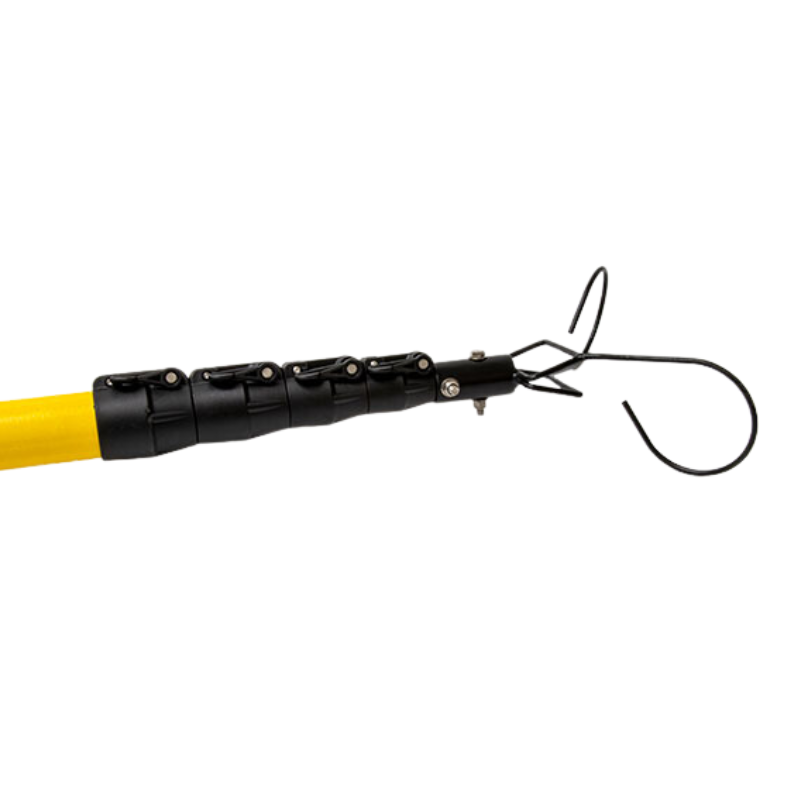

Telescopic Cable Raising Prop - 6.2m

The Non-Conductive GRP Telescopic Cable Handling Prop is an advanced tool designed for safe and efficient cable lifting and repositioning. Manufactured using high-quality GRP, this durable prop offers exceptional dielectric strength and chemical resistance, making it suitable for high-voltage environments.

Key Features:

  • Compact and Convenient Design:

    • Collapsible to a stowed length of 1.95m for easy storage and transport.
    • Fully extends to a length of 6.2m, ideal for handling elevated cables.
  • Fabricated Wire Cage:

    • Mounted at the top of the rod to assist in gathering cables for lifting and repositioning.
  • Advanced Locking System:

    • Double Locking Lever: Provides robust security with over-springing for added safety.
    • Non-corroding adjustable mechanism ensures long-lasting reliability.
  • Material Properties:

    • Glass Composite (GRP): Durable, corrosion-free, and stiff (40 GPa).
    • High dielectric strength and chemical resistance for enhanced safety in harsh conditions.
  • Dielectric Strength Certification:

    • Acceptance tests meet BSEN 60855, BSEN 61235, and BSEN 62193 standards at 100kV/foot.
    • Routine tests conform to IEEE 516-2009 and ASTM F3121/F3121 M-17 standards at 75kV/foot.

Technical Specifications:

  • Weight: 5.25kg
  • Cable Handling Diameter: Up to 35mm
  • Maximum Recommended Lifting Weight: 18kg
  • Number of Sections: 5
  • Colour: RAL 1018

Technical characteristics

  • Product model
  • W2440
  • Product code
  • W2440
