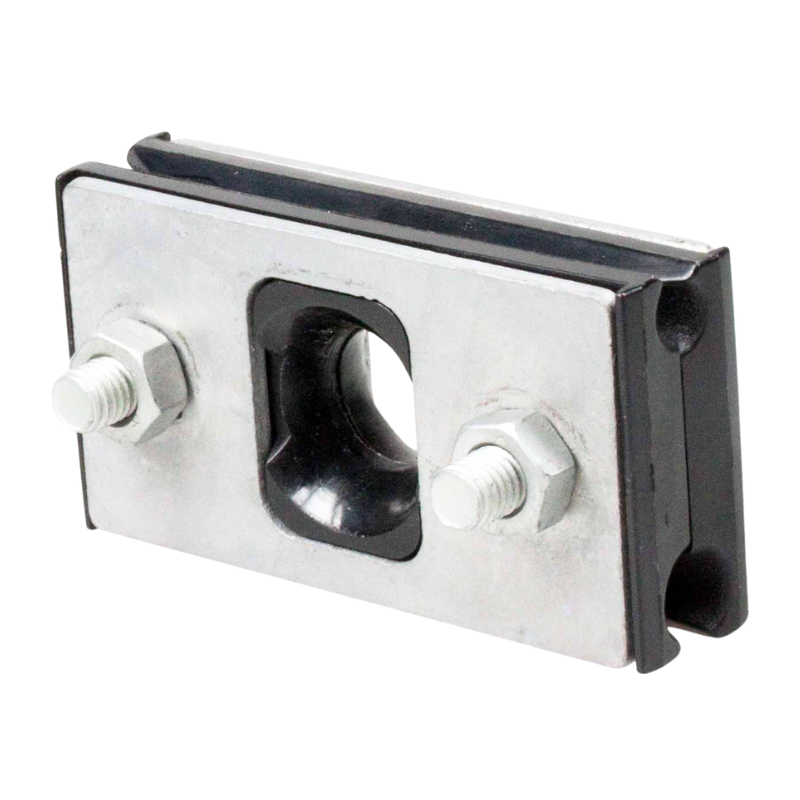

Telenco Aerial Suspension Clamps Figure-8 Cable Ø3-7mm
The Suspension Clamps are expertly designed for suspending optical fibre or coax figure-8 cables with either steel or dielectric (FRP) messengers. Ideal for distribution networks with aligned spans or configurations with angles under 15 degrees, these clamps provide reliable and secure support for figure-8 cables.
Designed for spans exceeding 90° and wider angles, the Telenco SC37C articulated suspension clamp ensures secure installation of figure-8 cables ranging from 3 to 7mm in diameter. This suspension clamp can be mounted directly on a pole using a pole bracket 30/41 or 30/41C, along with a bolt 1/13 and a 20mm pole band. Alternatively, it can be installed on a cross-arm using an angle cross-arm bracket 5/39 and a bolt 1/13.
For optimal installation, the SC37C suspension clamp is recommended to be used with a pigtail hook bolt Ø 12/14/16mm or mounted on a suspension plate CS with pigtail hook bolt BQC 12 x 50mm.
Key Features:
- Versatile Compatibility: Suitable for optical fibre and coax figure-8 cables with steel or dielectric messengers.
- Multiple Cable Sizes: Designed for figure-8 cables with diameters of 3-7mm and 7-11mm.
- Reliable Installation: Compatible with 12/14/16mm pigtail hook bolts or suspension plates for secure mounting.
- Durable Construction: Built to meet the demands of aerial cable distribution networks.
