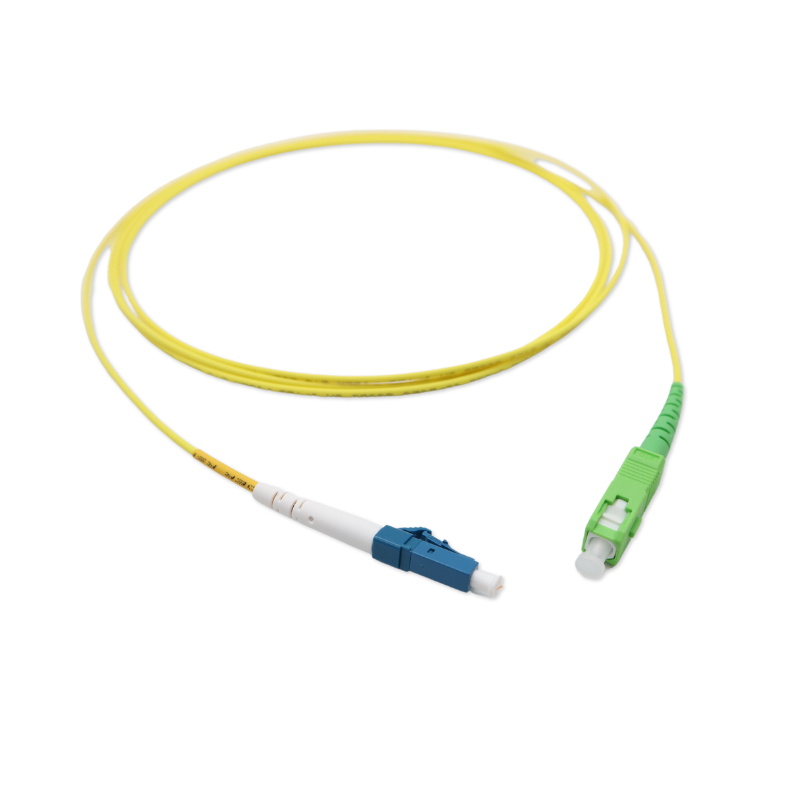

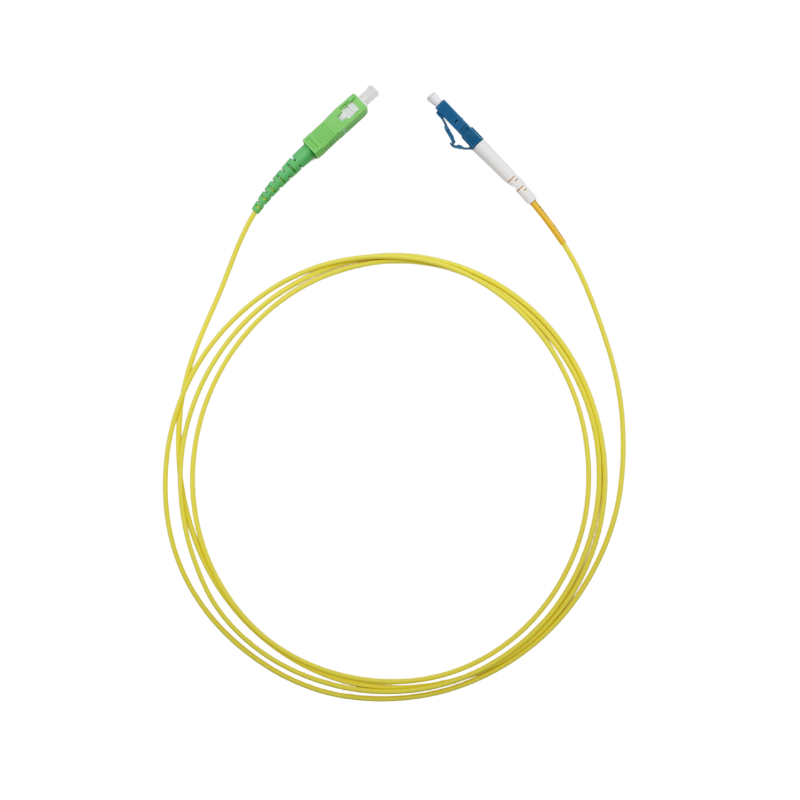

Telenco Patchcord SX LC/UPC–SC/APC G.657A2 Ø2mm – 1m
The Telenco 1m simplex patchcord with LC/UPC to SC/APC connectors is a high-performance fibre optic lead, designed for reliable use in FTTH, telecom, and data centre applications. Built with G.657A2 bend-insensitive singlemode fibre, it ensures minimal signal loss and high flexibility, ideal for compact or dense cabling environments.
The Ø2mm yellow LSZH jacket enhances durability and fire safety, while zirconia ceramic ferrules offer stable optical performance through precise alignment and reduced insertion loss.
Key Features & Benefits:
- Connector Type: LC/UPC to SC/APC
- Fibre Type: G.657A2 singlemode (bend-insensitive)
- Length: 1 metre
- Cable Diameter: Ø2mm
- Cable Colour: Yellow
- Configuration: Simplex (SX)
- Low insertion loss, high return loss
- LSZH sheath for added safety
- Bend-insensitive design ideal for tight installations
- Compliant with IEC 61300 series standards
Technical Specifications:
- Insertion Loss: ≤ 0.25 dB (97% typical), max 0.30 dB
- Return Loss: ≥ 55 dB (UPC), ≥ 60 dB (APC)
- Fibre Type: 9/125 µm G.657A2 singlemode
- Connector Polish: UPC (LC) / APC (SC)
- Operating Temperature: -20°C to +60°C
- Jacket Material: LSZH
- Cable Diameter: 2.0mm
- Weight: Approx. 0.012 kg
- Compliance: IEC 61754, IEC 61300
