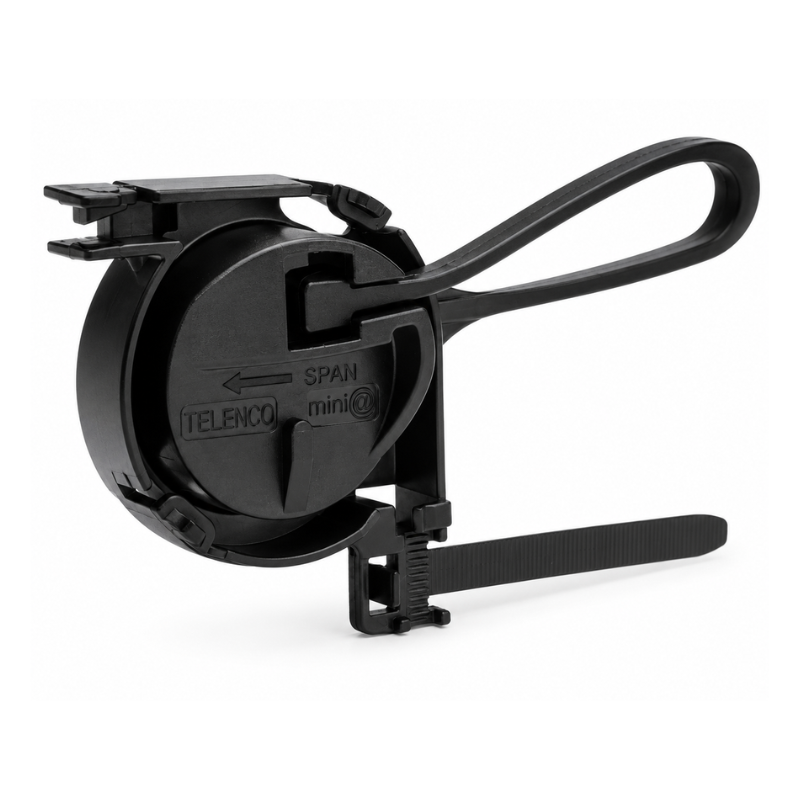

Telenco Mini @: Drop Mandrel Clamp 3-4mm
The Telenco FTTH Drop Clamp Mini is an innovative and cost-efficient solution designed for dead-ending aerial round drop cables with flexible insulation sheaths (3 to 4mm in diameter) for spans up to 70 meters. Its compact monobloc design ensures simple, fast, and tool-less installation, making it ideal for FTTH network deployments.
Engineered with a mandrel-shaped body, the cable securely self-tightens around the drum while the integrated cable tie ensures firm placement. The Mini clamp is made from UV-resistant thermoplastic, ensuring a minimum 25-year lifespan and reliability in various environmental conditions. Its open bail design allows for direct installation on pole fittings or mounting hardware with a minimum eye diameter of 10mm.
Key Features:
- Effortless Installation: Simple, fast, and tool-free setup.
- Durable Build: Made from UV-resistant thermoplastic, guaranteeing 25+ years of reliability.
- Versatility: Suitable for general drop cables with Ø3-4mm flexible insulating sheaths.
- Secure Attachment: Integrated cable tie for enhanced stability.
- Universal Compatibility: Directly installable on hardware with Ø10mm minimum eye or pigtail.
Installation Steps:
- Open the bail of the Mini clamp and locate the appropriate span.
- Insert the tensioned line into the top aperture and wind it 2 ½ times around the drum.
- Exit the cable through the bottom aperture and position the clamp on the fitting.
- Lock the bail and secure the cable using the built-in tie.
Testing and Certification:
The FTTH Drop Clamp Mini meets rigorous international standards, ensuring optimal performance:
- Climatic Ageing: Tested per NF EN C-20-540 (June 2002).
- Mechanical Stress: Certified by France Telecom FTR&D/7890 (July 2003).
- Vibration Resistance: Tested to NF EN 50289-3-13 (August 2003).
- Minimal Signal Loss: Proven insertion loss < 0.2 dB.
