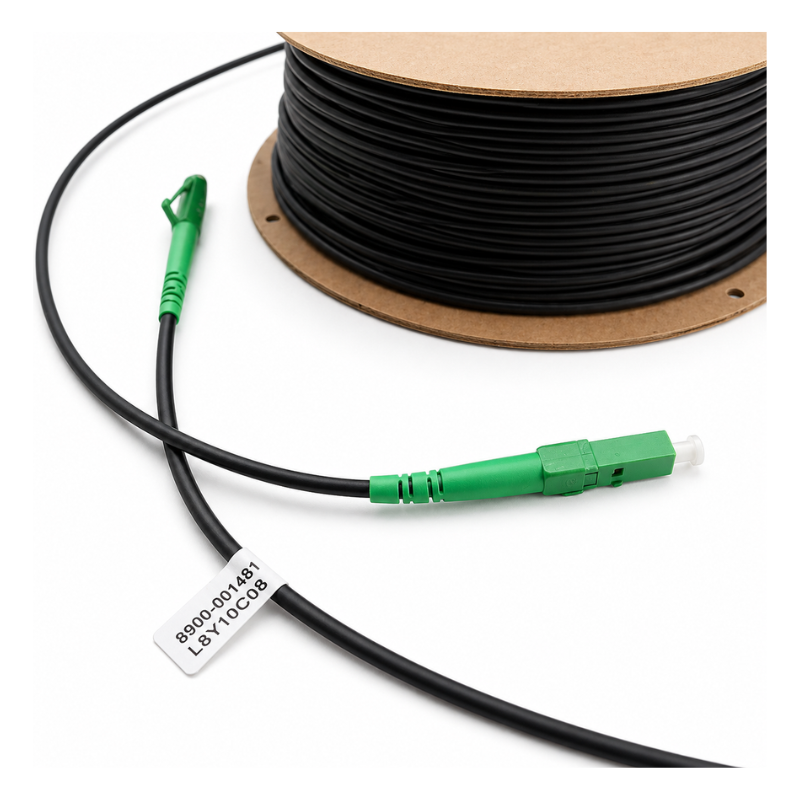

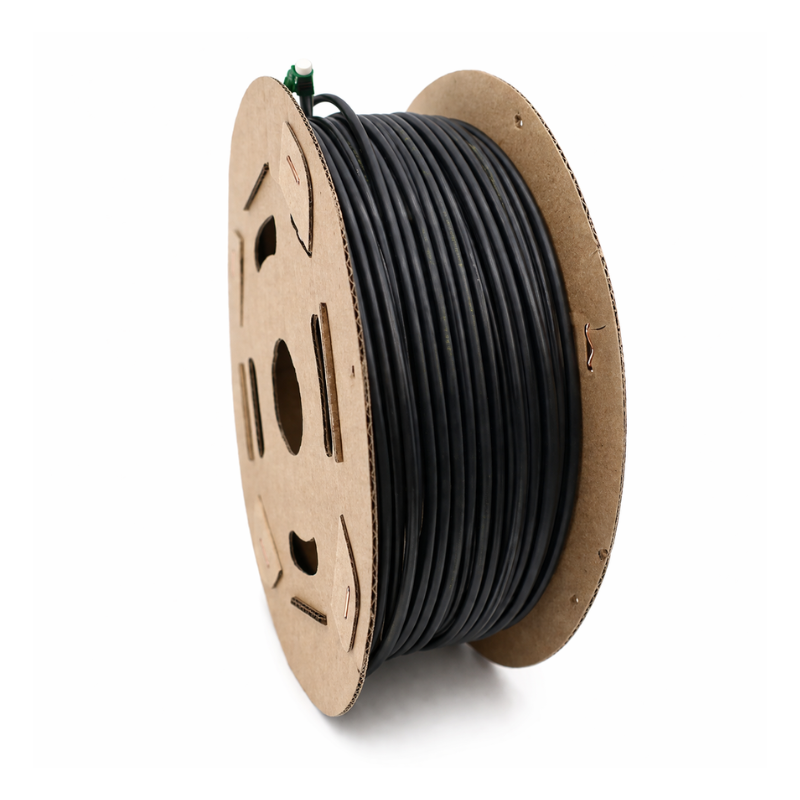

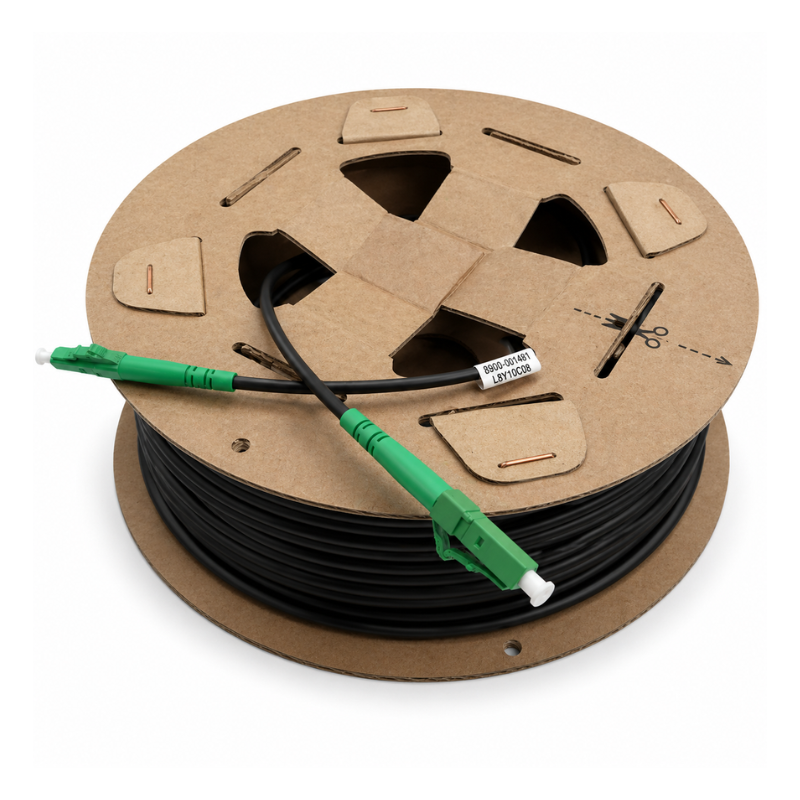

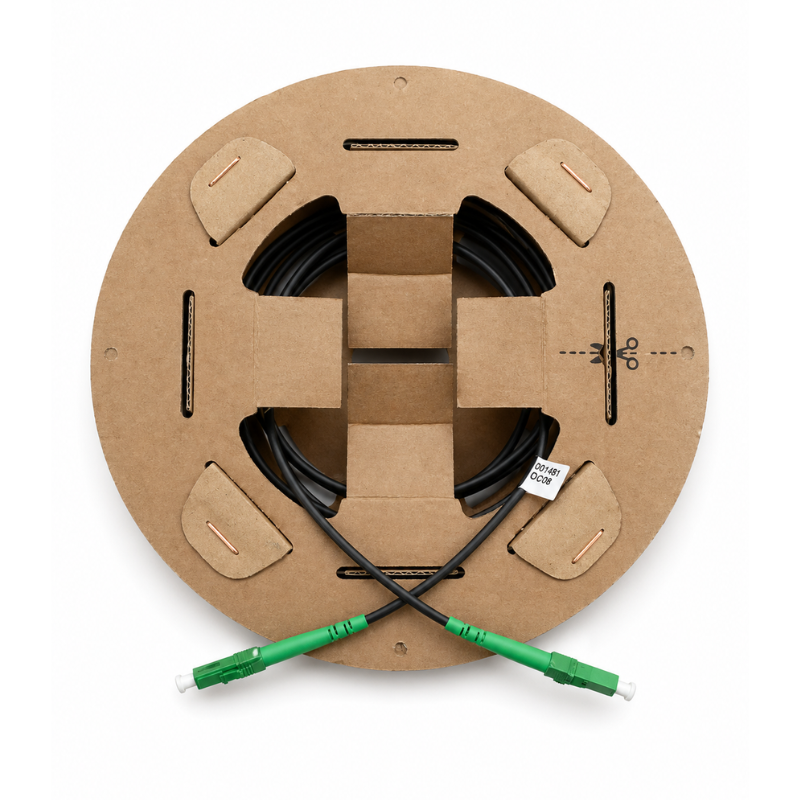

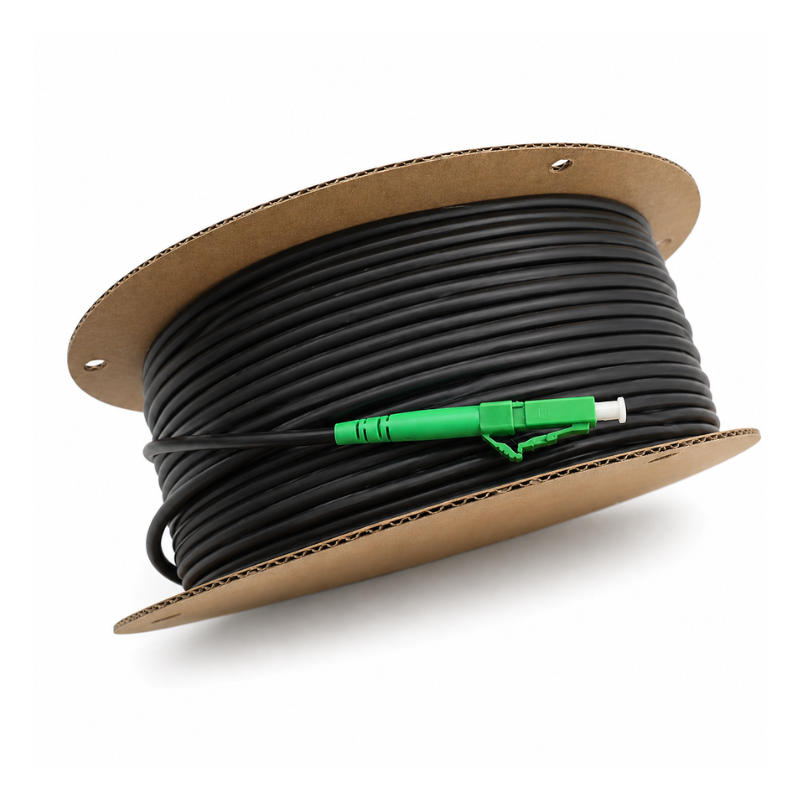

Telenco LM030PUK_1FO G657A2 LC/APC - LC/APC - 35m

The DROPTIC® LM030PUK Aerial Drop Cable is an innovative solution designed for efficient FTTH (Fibre to the Home) deployments in Single Dwelling Units (SDUs). Built for reliability and performance, this cable is perfect for overhead installations, façade installations, or pulling through ducts over several hundred meters.

The outer sheath ensures outstanding wear, tear, and UV resistance, while its small diameter offers excellent wind resistance. Reinforced with aramid yarns for tensile strength, the cable is engineered to perform under demanding conditions, delivering high mechanical and environmental reliability.

Features & Benefits:

• Pre-connectorisation compatibility for simplified installation.
• Polyurethane (PUR) outer sheath for superior mechanical durability.
• Integrated with Telenco® aerial & façade hardware, ELINE® transition boxes, and other optical telecom accessories.
• Excellent tensile and anchoring resistance for overhead and duct installations.
• Lightweight and small diameter for enhanced wind resistance.

Technical Characteristics:

• Fibre Type: Compliant with ITU G657A2 or G657B3 recommendations.
• Fibre Cores: 1FO.
• Outer Diameter: 3mm.
• Weight: 8kg/km.
• Reinforcement: Aramid yarns.
• Sheath Material: Polyurethane (PUR).
• Marking: DROPTIC – LM030PUK 1FO G657A2 – batch number – metric (yellow, 2m pitch).

Mechanical & Environmental Performances:

• Tensile Load: 300N (IEC 60794-1-2 – Method E1).

• Anchoring Resistance: 800N with no cable sliding.

• Breaking Load: 1200 < F < 1800 N (with mini clamp).

• Crush Resistance: 1000N/100mm; reversible at 2000N.

• Bending Radius: 12.5mm.

• Temperature Range:

  • Storage: -40°C to +70°C.

  • Operation: -20°C to +60°C.

Applications:

The DROPTIC® LM030PUK cable is tailored for overhead and façade installations, FTTH connectivity, and telecom infrastructure where durability, flexibility, and high performance are essential.
