TED® Fibre Launch Lead G.657A2 SC/APC - SC/APC 150m
The TED® 150m SC/APC to SC/APC Fibre Launch Lead is an essential tool for eliminating OTDR dead zones during fibre optic link testing. With 150 metres of high-quality G.657A2 bend-insensitive fibre and SC/APC connectors on both ends, this compact and rugged solution ensures accurate testing of the near-end and far-end connection points in FTTH, metro, and access networks.

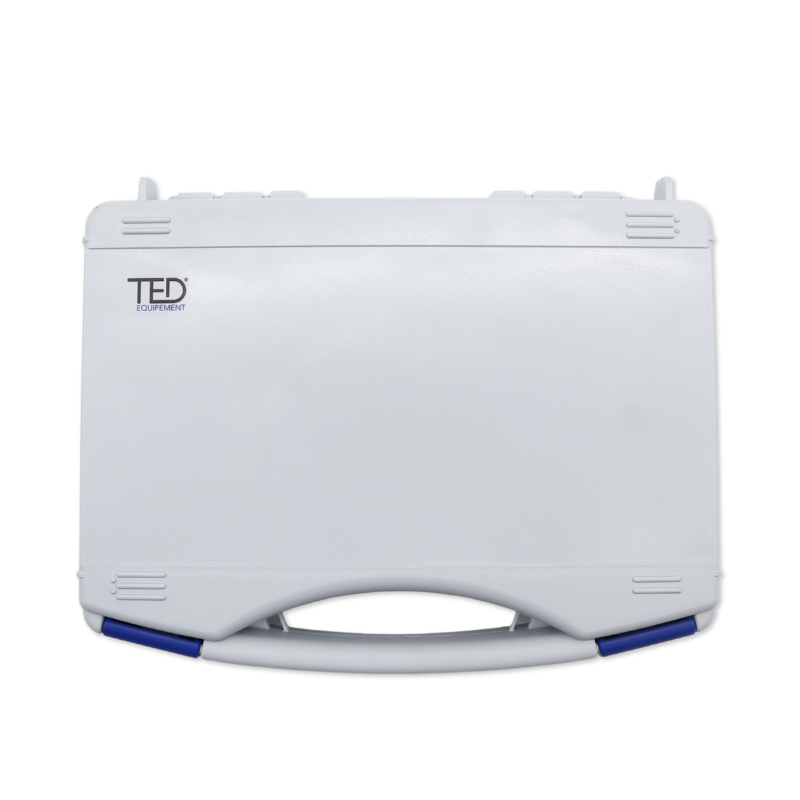

Housed in a durable, lightweight reel case, the lead features a protective design ideal for field applications. It includes integrated strain relief and a secure pigtail section to support repeated deployment without compromising signal integrity.
Key Features:
- 150m G.657A2 singlemode bend-insensitive fibre
- SC/APC to SC/APC connectors for precise OTDR testing
- Minimises launch and receive dead zones
- Rugged, compact case with built-in pigtail protection
- Ideal for FTTH, PON, access and metro networks
- Pre-tested for optimal insertion and return loss
- Lightweight and portable for field engineers
Technical Specifications:
- Fibre Type: G.657A2 Singlemode
- Connector Type: SC/APC - SC/APC
- Fibre Length: 150m
- Pigtail Length: 1.5m
- Cable Diameter: Ø 3mm
- Polish Type: APC
- Case Dimensions: 235 x 180 x 48mm
- Weight: Approx. 800g
