MAFI 3611 Vertical Tower Leg Offset Bracket
The MAFI 3611 Vertical Tower Leg Offset Bracket is designed for mounting telecom equipment on vertical tower legs in either a perpendicular or oblique configuration. With a flexible mounting arm angle of 45° or 60° (left or right) and support for various structural profiles, this bracket is ideal for complex antenna and RRU installations where both strength and adaptability are key.

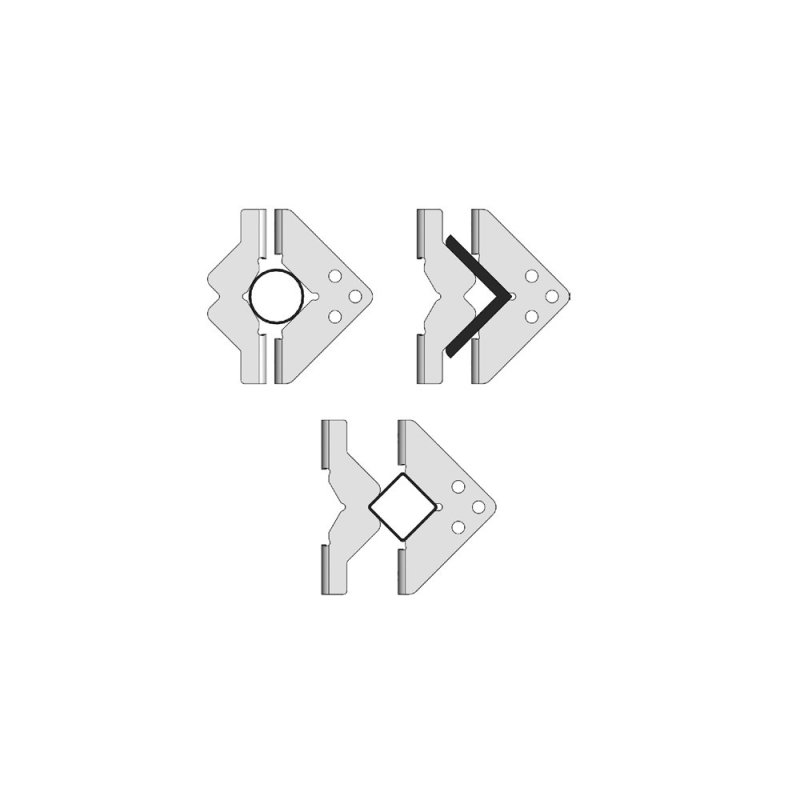

Compatible with a wide range of parent member types:
-
Circular: Ø 76.1–139.7mm (3–5.5")
-
Angular: 60×60 to 120×120mm (2.4×2.4" to 4.7×4.7")
-
Box Beam: 60×60 to 120×120mm (2.4×2.4" to 4.7×4.7")
And offset member options:

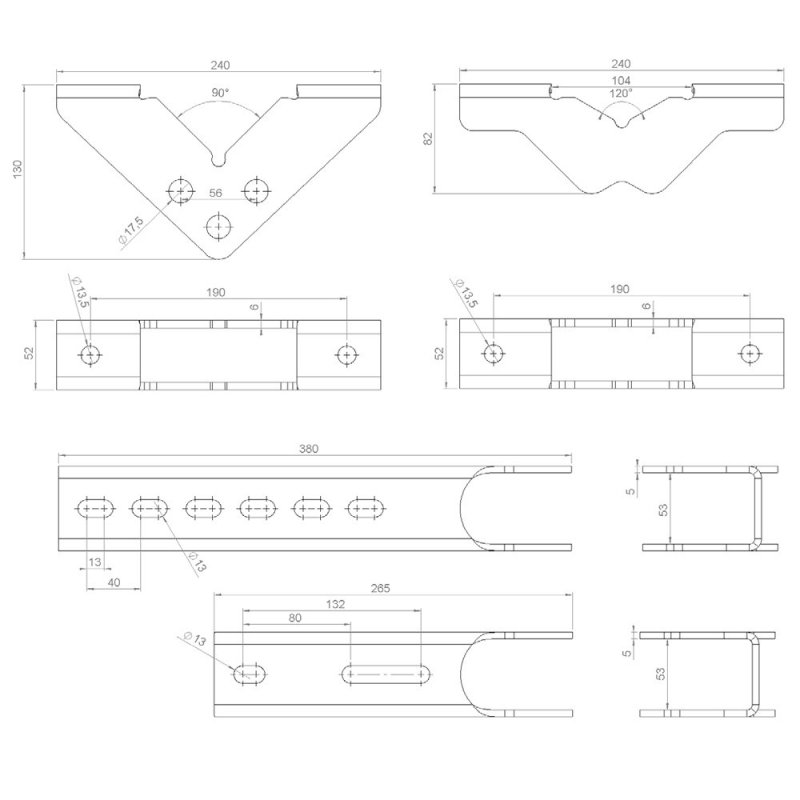

The 3611 bracket delivers robust performance with a 250kg load capacity, 572Nm torque resistance, and 2.4kN transient man-load, making it suitable for heavy-duty telecom environments. The hole pattern on the front clamp is specially designed to facilitate oblique mounting on angular or square structures, enhancing versatility during on-site deployment.
Manufactured from hot-dip galvanised steel, it provides long-term resistance to corrosion and harsh environmental conditions.
Key Features:
- Load capacity: 250kg (551 lb)
- Offset range: 219mm – 424mm
- Torque resistance: 572Nm per bracket
- Adjustable arm angle: 45° or 60°, left or right
- Compatible with circular, angular, and box beam tower legs
- Supports larger offset members with an optional kit
- Hot-dip galvanised finish for corrosion protection
- Optimised for perpendicular or oblique equipment mounting
