MAFI 3274 Universal Pole Mount

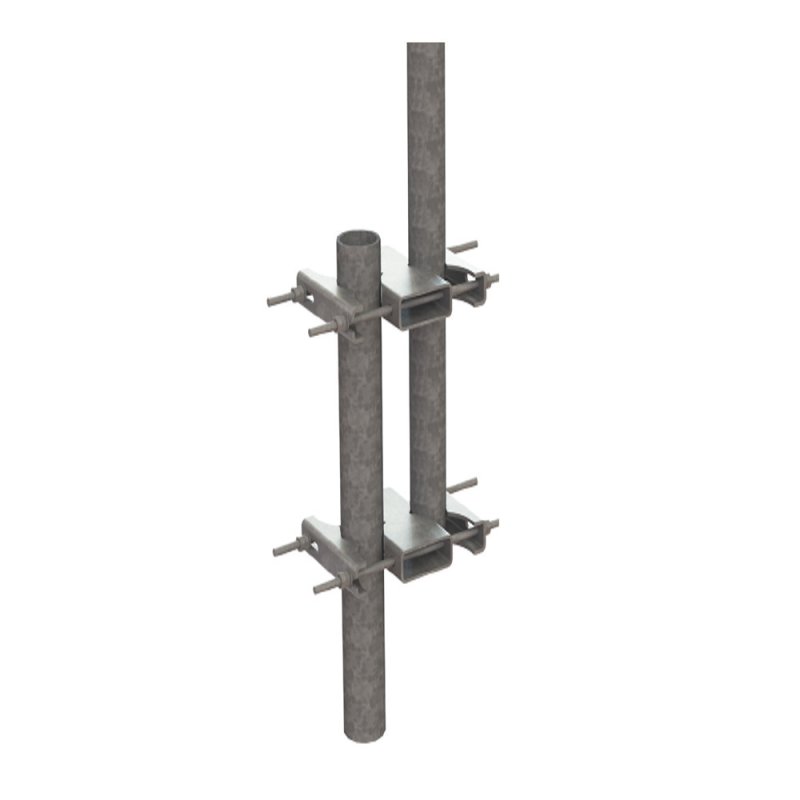

The MAFI 3274 Universal Pole Mount is a compact and high-strength bracket designed to offset antennas, RRUs, and other telecom equipment from tower legs or mast structures. With a load capacity of up to 250kg and a slim profile, it’s ideal for space-restricted installations where performance and reliability are critical.

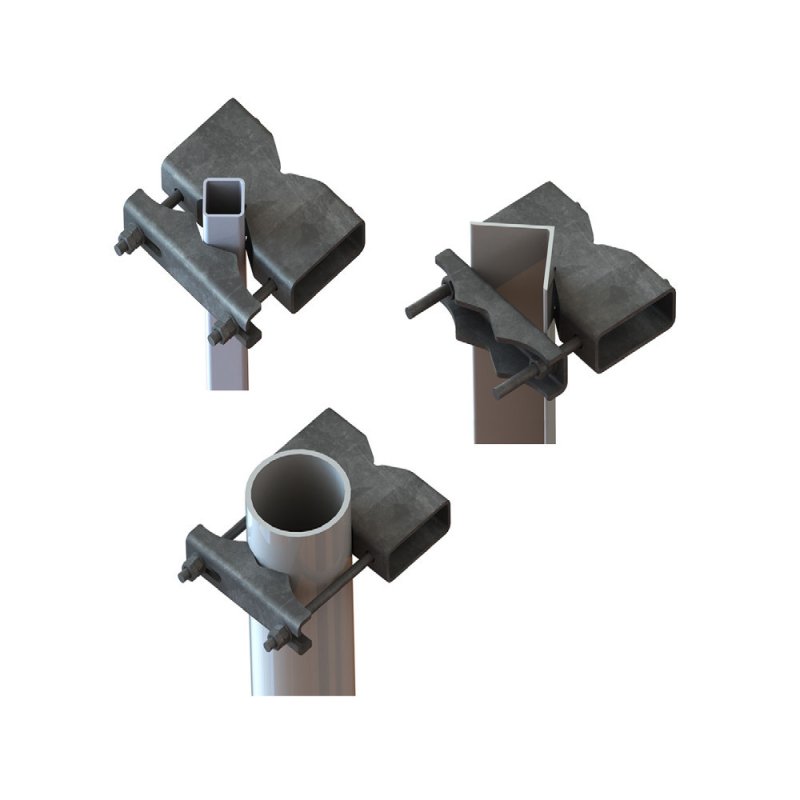

This bracket offers an offset range from 96mm to 186mm, supporting a variety of equipment configurations while maintaining structural integrity. The MAFI 3274 is engineered to fit a broad selection of mounting surfaces:
-
Circular Parent Members: Ø 25–114.3mm (1–4.5")
-
Angular Parent Members: 40×40 to 80×80mm (1.6×1.6" to 3.1×3.1")
-
Offset Members (Circular): Ø 48.3–114.3mm (1.9–4.5")
Built from hot-dip galvanised steel, the bracket offers excellent corrosion resistance and long-term durability, even in exposed or high-load environments. With a maximum resisting torque of 462Nm and an ultimate transient man-load rating of 2.4kN, it’s a reliable mounting solution for modern telecom deployments.
Key Features:
- Load capacity: 250kg (551 lb)
- Offset range: 96mm – 186mm
- Maximum torque resistance: 462Nm per bracket
- Slimline profile for restricted spaces
- Universal compatibility with circular and angular members
- Corrosion-resistant hot-dip galvanised finish
- Supplied as a complete kit with clamps and fixings
