MAFI 3610 Raking Tower Leg Offset Bracket

The MAFI 3610 Raking Tower Leg Offset Bracket is specifically engineered for mounting telecom equipment on angled or sloped (raking) tower legs, providing robust and adaptable support in both perpendicular and oblique orientations. With a flexible bracket arm configuration of 45° or 60°, left or right, it’s a reliable solution for installing RRUs, antennas, and related equipment on non-vertical structures.

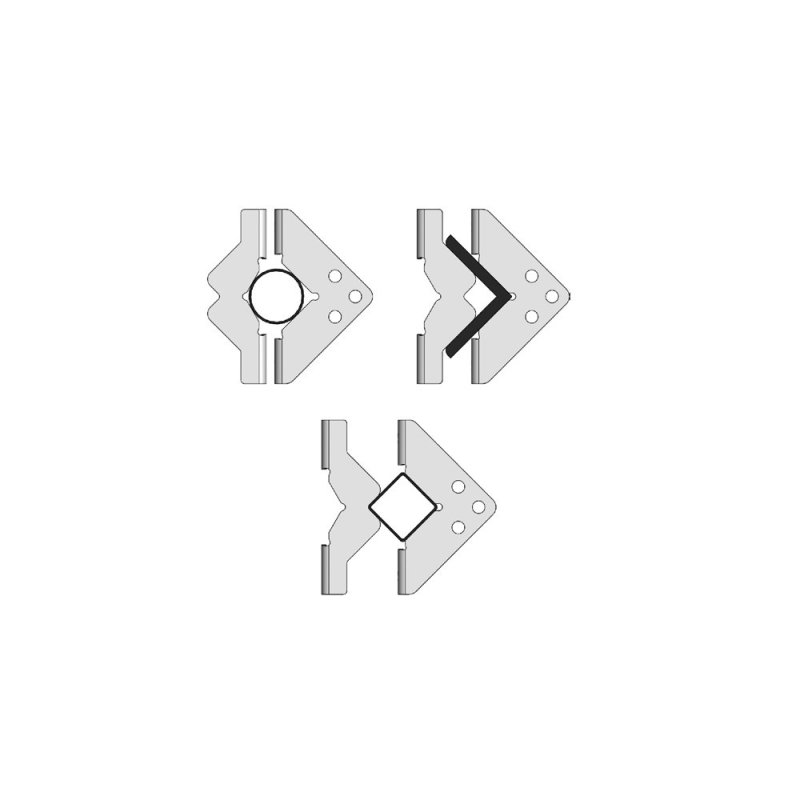

Designed for broad compatibility, the 3610 fits various parent member profiles, including:

• Circular: Ø 76.1–139.7mm (3–5.5")

• Angular: 60×60 to 120×120mm (2.4×2.4" to 4.7×4.7")

• Box Beam: 60×60 to 120×120mm (2.4×2.4" to 4.7×4.7")

Supports offset members:

• Standard Circular: Ø 60.3–76.1mm (2.4–3")

• With Optional Kit 2867-1: Ø 88.9–114.3mm (3.5–4.5")

With a load capacity of 250kg, torque resistance of 572Nm, and a transient man-load rating of 2.4kN, the MAFI 3610 offers strength and versatility even in challenging environments. It features adjustable offset arms, providing:

• Upper arm offset: 219mm to 424mm (8.6"–16.7")

• Lower arm offset: 250mm to 305mm (9.8"–12")

Manufactured from hot-dip galvanised steel, the bracket ensures long-term corrosion resistance and is designed for rapid deployment on-site.

Key Features:

• Compatible with circular, angular, and box beam raking tower legs
• Adjustable offset arms for flexible equipment positioning
• Bracket arm angle configurable to 45° or 60°, left or right
• Load capacity: 250kg (551 lb)
• Offset range (upper): 219–424mm, (lower): 250–305mm
• Max torque resistance: 572Nm
• Corrosion-resistant hot-dip galvanised steel
• Supports oblique installations on angular/square members
