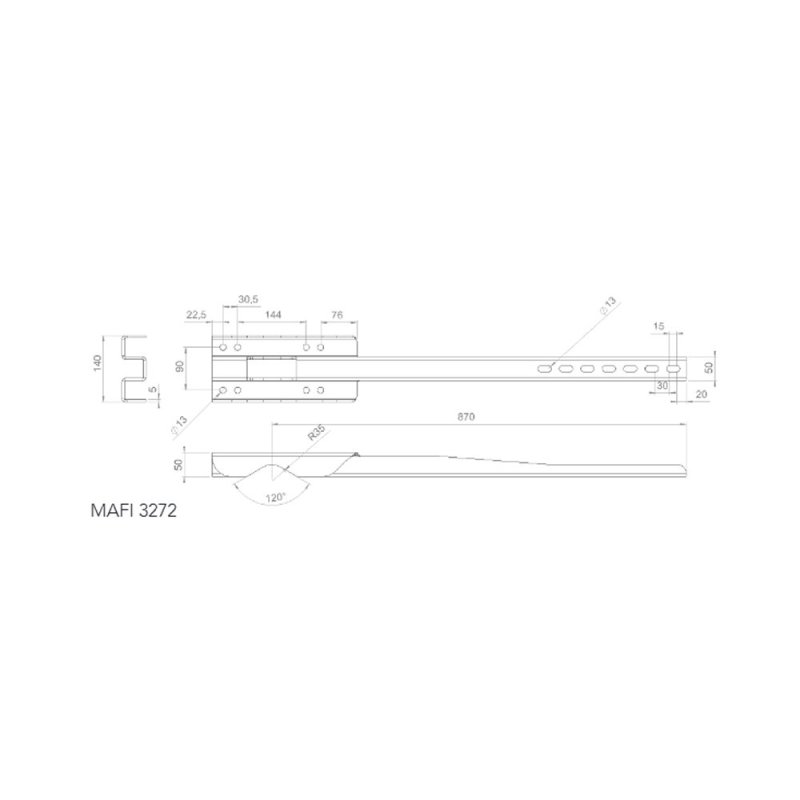

MAFI One-Direction Offset 3272

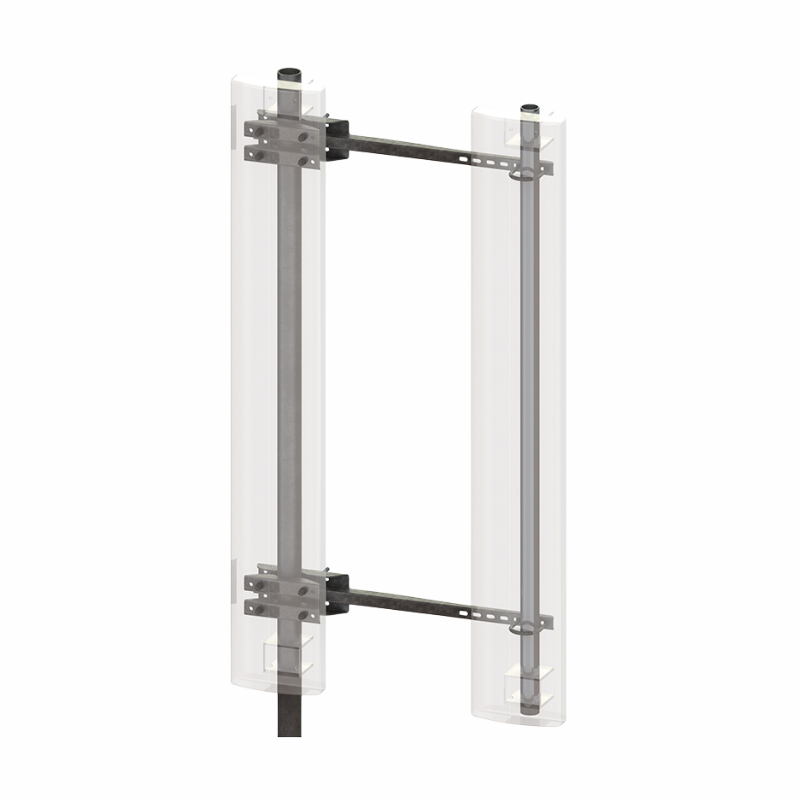

The MAFI 3272 One-Direction Offset Bracket is a specialised mounting solution designed to extend telecom equipment away from the mast or tower leg, ideal for antennas and RRUs requiring a long horizontal offset. Offering an impressive offset range of 617mm to 797mm, the bracket allows for unobstructed signal performance and easier installation spacing on crowded structures.
Compatible with a wide range of tower leg types, including:
-
Circular Parent Members: Ø 48.3–193mm (1.9–7.6")
-
Angular Members: 40×40 to 120×120mm (1.6×1.6" to 4.7×4.7")
-
Box Beams: 40×40 to 120×120mm (1.6×1.6" to 4.7×4.7")
Offset member support includes:
Despite its extended reach, the MAFI 3272 is designed to handle demanding telecom environments, with a load capacity of 60kg, resisting torque of 1396Nm, and a transient man-load rating of 2.4kN. Constructed from hot-dip galvanised steel, the bracket provides corrosion resistance and long-term durability in harsh outdoor conditions.
Key Features:
- Offset range: 617mm – 797mm (24.3" – 31.4")
- Load capacity: 60kg (132 lb)
- Torque resistance: 1396Nm per bracket
- Compatible with circular, angular, and box beam structures
- An optional kit is available for larger offset members
- Built from hot-dip galvanised steel
- Ideal for long-reach equipment placement on towers and masts
