MAFI Offset Mounting Bracket 3263

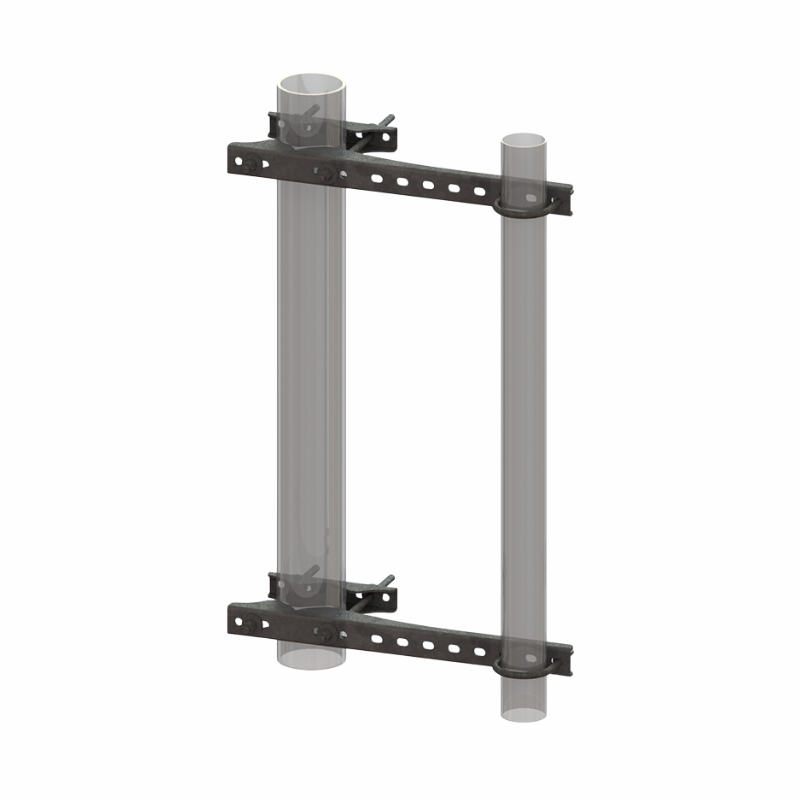

The MAFI 3263 Offset Mounting Bracket is designed to securely offset antennas and telecom equipment from a parent mast or tower leg, enabling flexibility and stability in mobile network deployments. Ideal for rooftop, pole, and tower applications, this medium-sized bracket offers a maximum offset of 420mm and supports a load capacity of up to 120kg, making it perfect for demanding field installations.
Offset Member:
-
Circular: Ø 25–168.9mm (1–6.6")
-
Angular: 40×40 to 120×120mm (1.6×1.6" to 4.7×4.7")
-
Box Beam: 40×40 to 120×120mm (1.6×1.6" to 4.7×4.7")
Compatible with offset members Ø 60.3–76.1mm (2.4–3"), the bracket delivers excellent rotational slip resistance, with each unit rated to withstand up to 698Nm of torque and a transient man-load of 2.4kN.
Manufactured from hot-dip galvanised S355MC steel with high-grade fixings, the MAFI 3263 ensures long-term durability even in harsh environments. The lightweight construction and compact form also make it easy to transport and install on site.
Key Features:
- Load capacity: 120kg (265 lb)
- Offset range: 195mm to 420mm
- Max torque resistance per bracket: 698 Nm
- Quick installation with fibreglass-compatible clamp system
- Compatible with circular, box, and angular parent members
- Hot-dip galvanised for corrosion protection

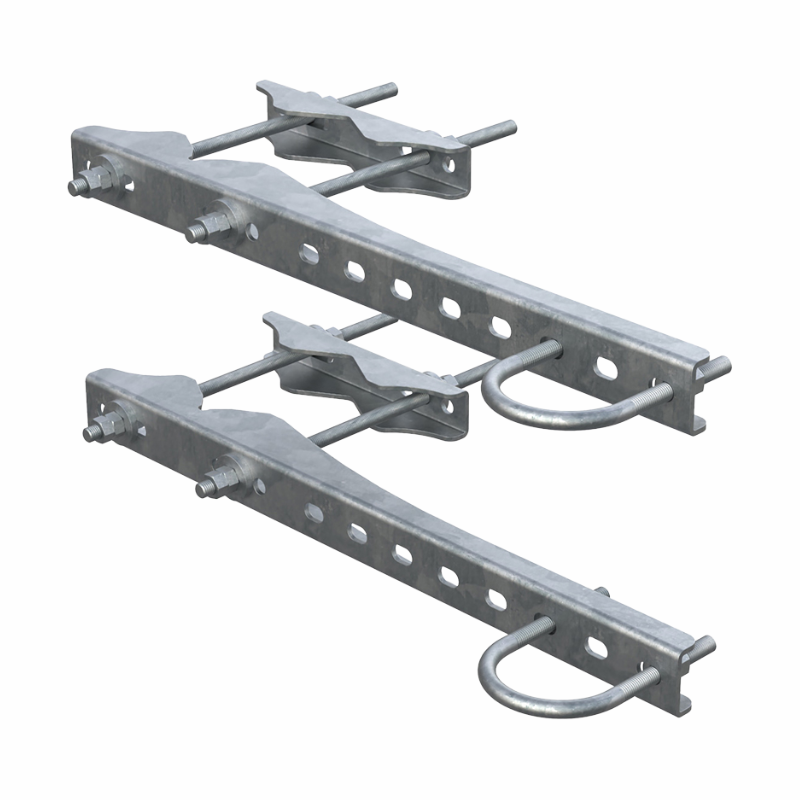

- Supplied as a complete kit with clamps, brackets, and fixings
