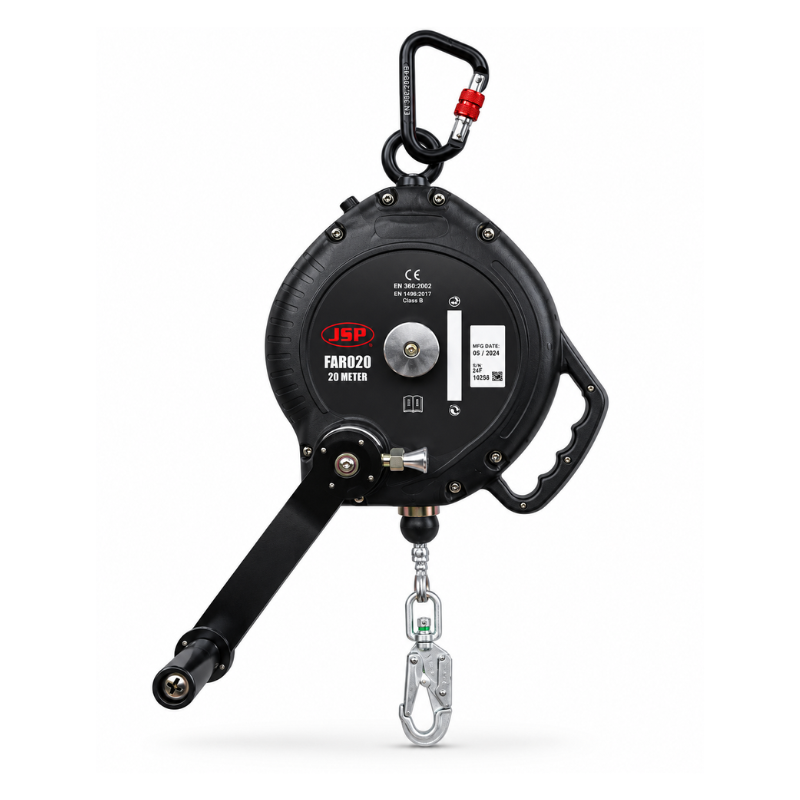

JSP Integrated Winch for Rescue-20m Wire Self Retractable Lifeline

Features & Benefits

• Retrieval fall arrester block in plastic casing which is coupled with hoisting winch to enable easy retrieval of victim.
• The Block allows the fall to arrest and also allows easy hoist of the victim with the help of its hoist handle.
• The locking pin on the side of the casing at the base of the handle allows this dual system to work in independent fall arrest & winch modes.
• Swivel the anchorage eye on the anchorage end.
• Robust and durable plastic casing.
• Galvanised steel wire diameter 4.5mm.
• Length of the wire: 20m.
• Conforms to and complies with EN 360:2002 and EN 1496:2017 class B.

Technical Specification:

• Pack quantity: 1
• Height: 35CM
• Width: 36CM
• Length: 56CM
• Weight: 14.158kg

• Steel swivel snap hook with fall indicator—gate opening: 20mm. Conforms to and complies with EN 362:2004 Class T.
• 1 screw gate aluminium connector at the anchorage point. Gate opening: 22mm. Conforms to and complies with EN 362:2004 Class B
