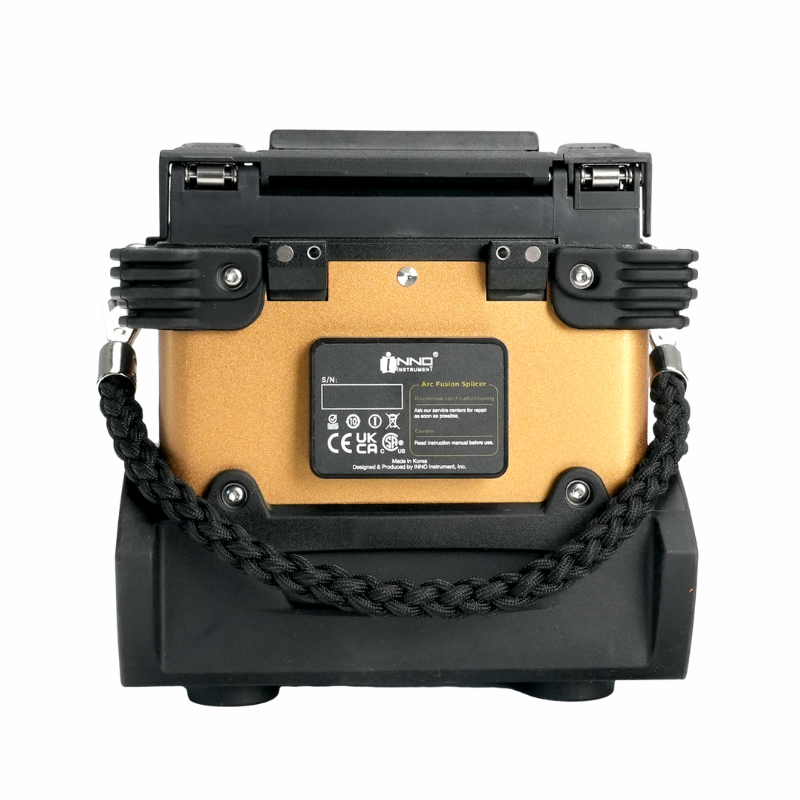

INNO View 5X Core Alignment Fusion Splicer
The INNO View 5X is a next-generation core alignment fusion splicer, designed for precision splicing in demanding fibre optic network environments. With ultrafast splice and heating times, a high-resolution touch display, and integrated job tracking features, this compact device delivers maximum efficiency and reliability for fibre technicians. Its rugged, field-ready design ensures durability against dust, shock, and water, making it ideal for use in diverse installation environments including FTTx, backbone, and metro networks.
Built for performance and versatility, the View 5X includes smart IoT connectivity and cloud-based reporting via View Pro Manager, ensuring seamless data management and workflow optimisation.
Key Features:
- Core alignment splicing with ultra-precise performance
- Fast splice time: as low as 4 seconds
- Quick heating time: as fast as 9 seconds
- 5” full colour LCD touch screen
- Real-time job and work management via IoT connectivity
- Supports SM, MM, DS, NZDS and G.657 fibre types
- High magnification: up to x520
- Compact and lightweight design (2.35 kg)
- IP5X dust resistance, IPX2 water resistance, 76cm drop-tested
- Cloud storage and USB-C data transfer
- Operates in harsh environments (−10°C to +50°C, 95% humidity)
Technical Specifications:
- Splice Time: 4–7 sec (mode dependent)
- Heating Time: 9–13 sec
- Typical Splice Loss: SM/MM: 0.01dB, DS/NZDS: 0.03dB
- Display: 5.0" colour LCD full touchscreen
- Electrode Life: Up to 6000 arcs
- Memory: 20,000 splice records / 10,000 splice images
- Fibre Types: SM, MM, DS, NZDS, G.657
- Battery: 5200mAh (optional 7000mAh), up to 300 cycles
- Protection Sleeve Compatibility: 20–60 mm
- Dimensions: 151 x 149 x 177 mm
- Weight: 2.35 kg
- Resistance: IP5X (dust), IPX2 (water), 76cm drop
- Operating Conditions: −10°C to +50°C, 0–5000m altitude
|
