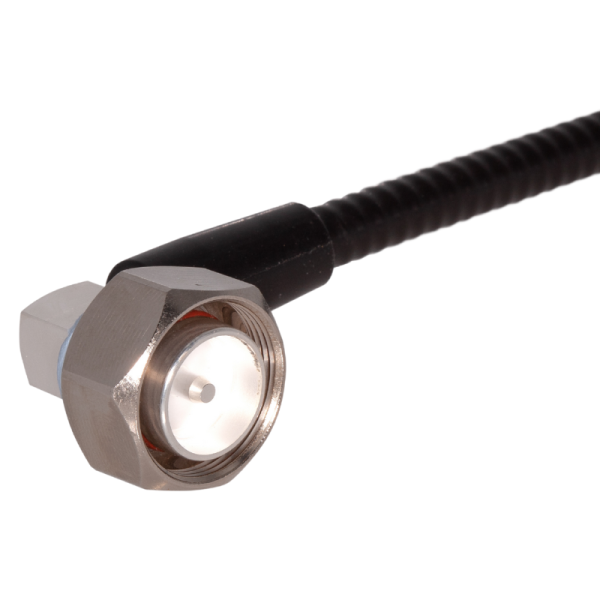

HUBER+SUHNER Jumper 4.3-10m - 4.3-10m R/A 1/2 S Flex 1m

This jumper cable features 4.3-10 male connectors on both ends with a right-angle 1/2" S Flex cable. It is 1 metre in length, designed for flexible and reliable connections in tight spaces.

Key Features:

• Right-Angle 4.3-10 Connector: Designed for space-constrained installations while maintaining low PIM performance.
• 50 Ω Impedance: Optimised for low-loss RF signal transmission with high return loss.
• Wide Frequency Range: Supports up to 6 GHz, ideal for 5G, LTE, and telecom networks.
• High Power Handling: RF power rating of ≥ 780W at 1 GHz, ensuring stable performance.
• Low Attenuation & Intermodulation: IM3 tested to -117 dBm @ 2x20W (-160 dBc) for superior signal integrity.
• Flexible & Durable Construction: Corrugated ½” high-flex cable allows reliable performance in demanding environments.
• Weatherproof & IP68-Rated: Ensures protection against water, dust, and extreme temperatures.
• RoHS Compliant: Free of hazardous substances, meeting EU safety standards.

Mechanical Data:

• Cable Type: Corrugated ½” High Flex (S) with PE jacket
• Connector Type:
  • 4.3-10 Right-Angle Male (Hex Nut)
  • 4.3-10 Straight Male (Hex Nut)
• Cable Length Tolerance:
  • ≤ 2m: ±10mm
  • ≤ 5m: ±30mm
  • > 5m: ±1% of length
• Coupling Nut Torque: 5 - 8 Nm
• Bending Radius:
  • Single: 25mm
  • Repeated (20x): 50mm
• Recommended Hanger Spacing: 0.8m

Electrical Data:

• Impedance: 50 Ω
• Maximum Operating Frequency: 6 GHz
• Return Loss (100% Tested)
  • 1 GHz: 32 dB (≤ 4m), 31 dB (≤ 7m), 30 dB (≤ 10m)
  • 2.2 GHz: 30 dB (≤ 4m), 29 dB (≤ 7m), 28 dB (≤ 10m)
  • 2.7 GHz: 28 dB (≤ 4m), 27 dB (≤ 7m), 26 dB (≤ 10m)
  • 3.8 GHz: 25 dB (≤ 4m), 24 dB (≤ 7m), 23 dB (≤ 10m)
• Intermodulation (IM3 2x20W): ≤ -117 dBm (-160 dBc)
• RF Power Handling (40°C, Sea Level):
  • 1.0 GHz: ≥ 780W
  • 2.2 GHz: ≥ 520W
  • 2.7 GHz: ≥ 470W
  • 3.8 GHz: ≥ 390W
• Attenuation (at 20°C):
  • 1.0 GHz: 0.11 dB/m
  • 2.2 GHz: 0.17 dB/m
  • 2.7 GHz: 0.19 dB/m
  • 3.8 GHz: 0.23 dB/m

Environmental Data:

• Operating Temperature: -40ºC to +85ºC
• Installation Temperature: -25ºC to +60ºC
• Storage Temperature: -70ºC to +85ºC
• Waterproof Rating: IP68, 0.1 bar, 24 hours at 20°C
• RoHS Compliance: Lead-free, meets EU 2011/65/EU standards

Connector & Cable Construction:

• Connector Type:
  • 4.3-10 Right-Angle Male (Hex Nut)
  • 4.3-10 Straight Male (Hex Nut)
• Connector Material:
  • Body, Nut & Centre Contact: Brass
  • Insulator: PTFE
• Plating:
  • Body: Silver or Tremetal
  • Centre Contact: Silver
  • Nut: Nickel or Tremetal
• Cable Jacket: PE, Black, Halogen-Free (IEC 60754-1)
• UV Resistance: DIN EN ISO 4892

Marking & Packaging:

• Cable Marking: Manufacturer’s trade name, PO or Batch No., Product Description
• Positioning:
  • ≤ 1m: Centre of cable
  • > 1m: 30 cm from connector moulding
• Packing: Sealed plastic bag with connector protection

Ideal for:

• 5G and LTE Telecom Networks
• RF Communication Infrastructure
• Broadcast and Satellite Applications
• Low PIM DAS (Distributed Antenna Systems)
• Antenna Feeder and Transmission Lines
