Blown Cable HD G657A1 48F SM 200um 12F Tube (OQM 2km)

Blown Cable HD G657A1 48F SM 200um 12F Tube.

Product code: F1180-048-0001
 In stock
£0.51 exc VAT
(0)
Product attachments Product attachments

Description

Description:

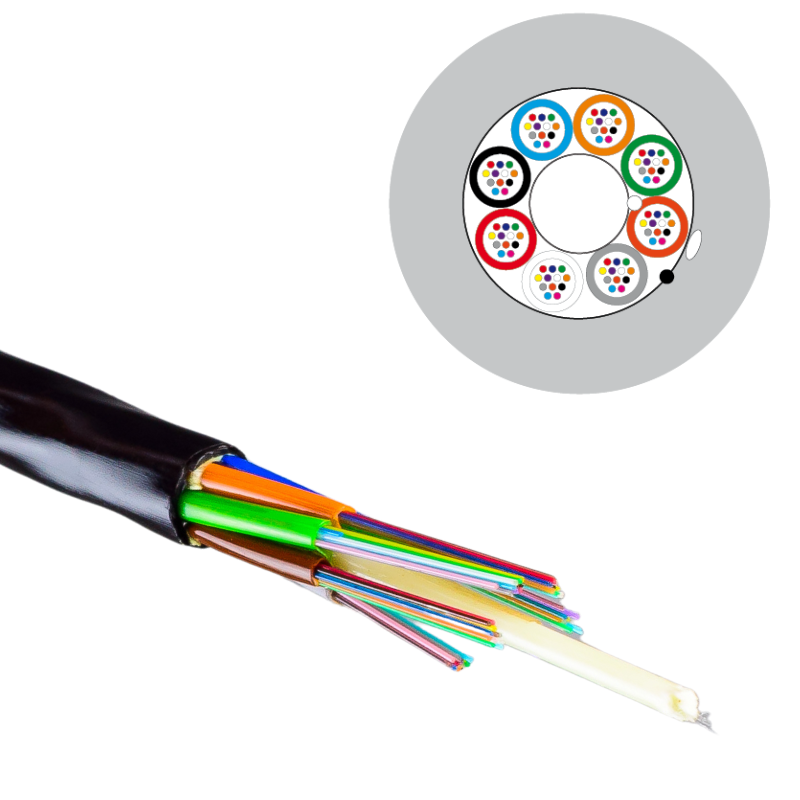

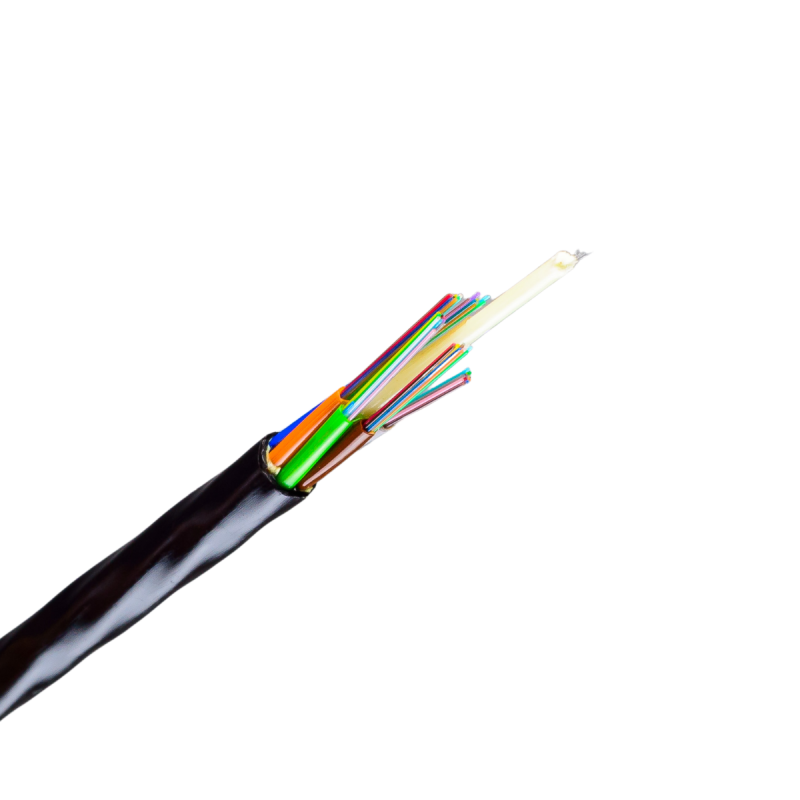

Blown Cable HD G657A1 48F SM 200um 12F Tube

The Telenco Micro Cable HD (48F) is a high-capacity fibre optic cable designed for microduct installations, offering ultra-slim diameter, exceptional bend resistance, and robust performance. With 200µm optimised bend-loss G.657.A1 single-mode fibres, this micro cable is ideal for network operators requiring high fibre density with minimal space requirements.

Key Features:

  • High Fibre Density in Compact Design – Supports 96F while maintaining an ultra-slim diameter for microduct installations.
  • Optimised Bend-Loss Performance – Utilises G.657.A1 bend-resistant fibres for superior optical performance.
  • Water-Blocked Protection – Gel-filled loose tubes and water-swellable yarn prevent moisture ingress.
  • Robust & Flexible Sheath – HDPE black outer sheath provides durability, anti-rodent protection, and easy handling.
  • Lightweight & Easy Installation – Enables faster microduct deployments with reduced weight and improved flexibility.
  • Fibre Configurations – Available in 200µm to meet different network requirements.
  • Telenco Quality & Compliance – Manufactured to meet IEC, ITU-T, Telcordia GR-20, RoHS, and REACH standards.

Technical Specifications:

  • Fibre Type: G.657.A1 (bend-resistant, low-loss single-mode fibre)
  • Fibre Count: 48F
  • Cable Diameter:
    • 4.5 ± 0.3mm (48FO)
    • 5.5 ± 0.3mm (96FO)
    • 6.8 ± 0.3mm (144FO)
  • Cable Weight:
    • 15 ± 5kg/km (48FO)
    • 30 ± 5kg/km (96FO)
    • 45 ± 5kg/km (144FO)
  • Tensile Strength:
    • 48FO-72FO: 200N
    • 96FO: 800N
    • 144FO: 1000N
  • Crush Resistance: 1000N (IEC-60794-1-21-E3)
  • Impact Strength: 1Nm (IEC-60794-1-21-E4)
  • Minimum Bending Radius: 20 x D (IEC-60794-1-21-E11)
  • Water Penetration: 1m water head, 3m sample, 24 hours (IEC-60794-1-21-F5)
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -20°C to +70°C
  • Optical Attenuation:
    • 1310nm: ≤ 0.36dB/km
    • 1550nm: ≤ 0.23dB/km
  • Packaging: Wooden drums or reels with sealed cable ends.

Ideal for:

  • FTTH (Fibre-to-the-Home) and FTTX network rollouts
  • High-density fibre network deployments
  • Microduct fibre optic installations
  • Telecom and broadband service providers

Technical characteristics

  • Product model
  • F1180-048-0001
  • Product code
  • F1180-048-0001
