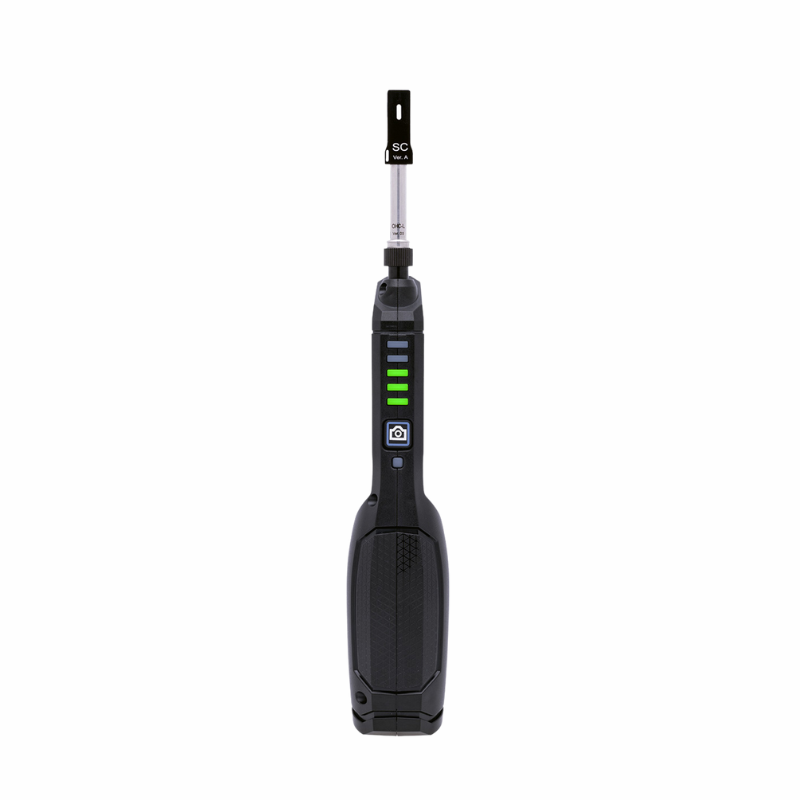

EXFO FIP-200 Connector Checker
The EXFO FIP-200 Connector Checker is a compact, field-ready inspection tool designed for fast, accurate assessment of fibre connectors, especially during FTTH and broadband service activation. Built on EXFO’s trusted inspection platform, the FIP-200 delivers automated pass/fail analysis in under 10 seconds, helping engineers reduce network faults and eliminate repeat site visits.
With its one-button operation, blue LED illumination, and 5-bar cleanliness rating, the FIP-200 simplifies connector inspection for users of all experience levels. It operates autonomously with onboard storage, while also offering cloud synchronisation via EXFO Exchange™ for centralised job tracking, compliance, and reporting.
Key Features:
- Single-button operation – quick, no-training-needed usage
- 5-bar pass/fail LED rating – adapted to broadband activation
- Blue LED light source (460nm) – enhances dirt and defect contrast
- Dual-core CPU – ultra-fast boot time and analysis speed
- Autonomous mode – stores up to 100 test results locally
- EXFO Exchange™ compatible – sync jobs, results, and locations via cloud
- Quick-connect tips – easy switching between connector types
- Long battery life – up to 210 tests on a single charge
- No moving parts – solid-state design for increased field durability
- Rugged housing – field-tested design with ergonomic grip
Applications:
- FTTH and broadband service activation
- Inspection of SC/APC, LC/APC, OptiTap®, Pushlok™, DLX, and FastConnect connectors
- Dense panel and in-cabinet fibre inspection
- Network quality assurance and compliance
- Fibre troubleshooting and pre-clean checks
Technical Specifications:
- Length: 247 mm (with tip)
- Weight: 137 g
- Field of View: 0.75 mm × 0.75 mm
- Camera Sensor: 5 MP
- Light Source: Blue LED (460 ±10 nm)
- Connectivity: WiFi, Bluetooth®, USB-C
- Battery: Lithium-polymer, 210 captures per charge
- Charging Time: 50% in 46 min, 100% in 120 min
- Inspection Time: < 10 seconds
- Local Storage: Up to 100 measurements
- Temperature Range: –10 °C to 40 °C operating, –20 °C to 60 °C storage
Included Accessories (KIT options):
- Long-reach optical head
- SC/APC and/or LC/APC inspection tips
- USB-C cable and AC adapter
- Soft carrying pouch or combo kit with holster
|
