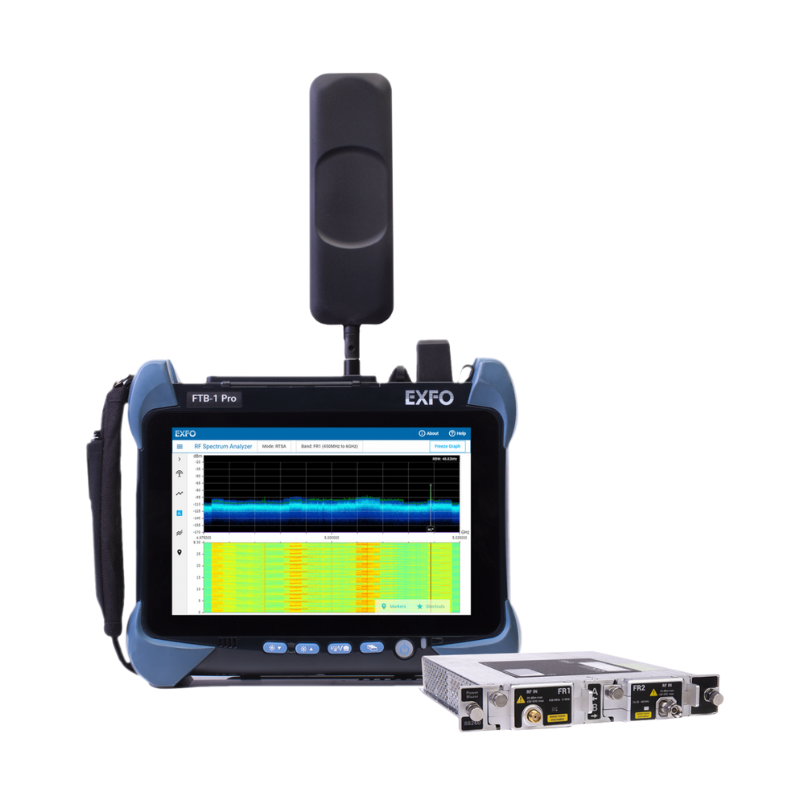

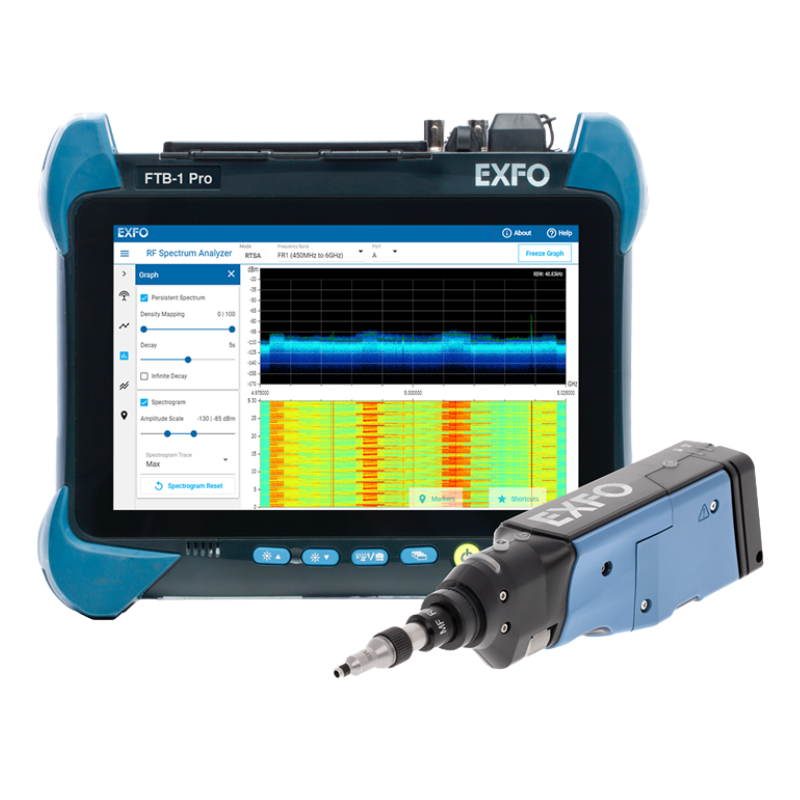

EXFO 5GPro Spectrum Analyser

The EXFO 5GPro Spectrum Analyzer is a powerful, all-in-one field-testing solution designed to empower mobile network engineers with real-time visibility into 4G LTE and 5G RF environments. Compact, modular, and highly portable, it allows accurate spectrum and signal analysis across FR1 (450 MHz – 6 GHz) and FR2 (24.25 GHz – 40 GHz) bands. Whether validating beamforming, hunting interference, or verifying time synchronisation, the 5GPro is your go-to tool for high-quality, efficient 5G rollouts and upgrades.

Engineered for field technicians, the unit features a responsive touchscreen, patent-pending Snap-to-Peak detection, real-time spectrum views, TDD gated sweep, and advanced 5G SSB blind scanning. It supports multi-PCI analysis (up to 12 PCIs), coverage mapping, and LTE demodulation, making it ideal for installation, commissioning, and maintenance tasks.

Key Benefits:

• All-in-One Solution: Combines RF spectrum analysis, OTDR, CPRI/eCPRI, and Ethernet testing up to 100G.

• Real-Time Interference Hunting: Snap-to-Peak and audible tone help identify hidden interferers and external PIM quickly.

• Full Band Coverage: Analyze both low/mid-band (FR1) and mmWave (FR2) signals with modular flexibility.

• Precise 5G Validation: SSB blind scanner and beamforming metrics offer accurate 5GNR performance insight.

• Rugged & Portable: Lightweight and shock-resistant design with over 4 hours of battery life for field conditions.

Technical Specifications:

Frequency Range:

• FR1: 450 MHz – 6 GHz

• FR2: 24.25 GHz – 40 GHz

Bandwidth:

• Up to 100 MHz real-time analysis

Connectivity:

• SMA (FR1) / 2.92mm K-male (FR2) connectors

• WiFi, LAN, USB 2.0 & 3.0, MicroSD, 3.5mm audio jack

Performance Metrics:

• RF Max Input: 30 dBm (FR1), 20 dBm (FR2)

• Max Resisting Torque: >104 dB dynamic range

• Amplitude Uncertainty: ±2 dBm

• Preamplifier and auto/manual attenuator: 0 to 30 dB

• Phase Noise: up to –137 dBc/Hz @ 10 MHz

Real-Time Capabilities:

• RTSA bandwidth: 6.25 – 100 MHz

• 60,000 FFT/s rate with 50μs POI

• Up to 12 simultaneous markers and Snap-to-Peak tracing

5G Signal Analyser:

• PCI, beam index, SSB periodicity, SS-RSRP, SS-RSRQ, SS-SINR

• Multi-PCI filtering and auto subcarrier detection

Dimensions & Weight:

• Size: 210 × 254 × 96 mm

• Weight: 2.9–3.7 kg (depending on config)

Battery Life:

• Dual carrier: >2h

• High power dual carrier: >4h

Compliance:

• MIL-PRF-28800F Class 2 shock/vibration/drop

• Windows 10 OS with 128GB internal memory
