Duct Seal (45–60mm Duct) TDUX-60

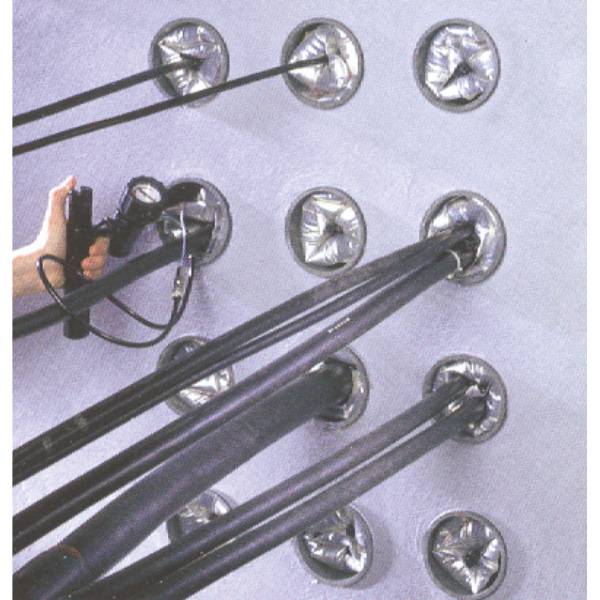

The TDUX-60 is a premium inflatable duct sealing solution engineered to seal 45–60mm telephone cable ducts and protect telecom infrastructure from water ingress. As part of the innovative TDUX range, this wraparound sealing system ensures a permanent, airtight, and watertight barrier to prevent leakage into exchange vaults or manholes. Designed for use with plastic, concrete, or steel duct wall-feedthrough systems, it is compatible with both polyethylene and lead-jacketed cables, including oval-shaped ducts.

Installation is fast and straightforward using a Duct Inflation Tool, and can be carried out even when water is actively flowing from the duct. The TDUX-60 is ideal for vacant ducts or those containing one or two cables, with an optional clip available for multiple cables. With high chemical and bacterial resistance and an environmentally friendly, non-toxic design, it provides a dependable long-term seal in all conditions.

Key Features:

• Quick and simple installation, even in tight enclosures

• Flexible, inflatable wraparound seal

• Fits both oval and round ducts and cables

• Suitable for a wide cable diameter range

• Seals empty ducts or those with one/two cables

• Optional clip for multiple cable applications

• Effective even during active water flow

• Airtight and watertight up to 50 kPa

• Non-toxic and environmentally safe

• Resistant to chemicals and bacteria

• Easy to remove when needed
