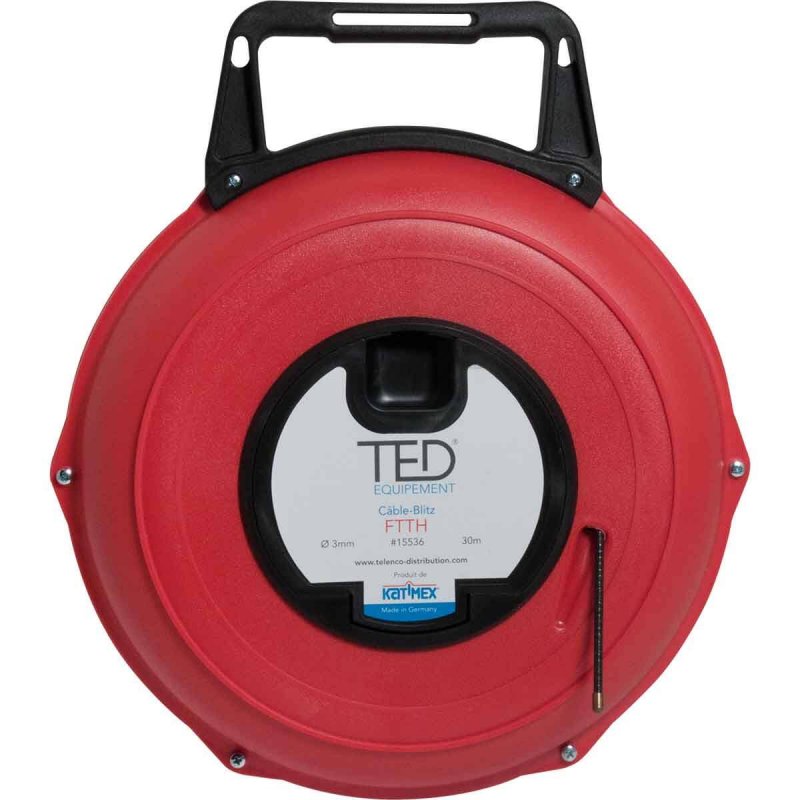

TED® Duct Rod FTTH Cable-Blitz - 3mm x 30m
The TED® FTTH Microduct Pulling Rod - Ø3mm x 30m is a specialised solution designed to simplify the roll-out of fibre optic networks, particularly for last-mile FTTH deployments. With a high-quality fibreglass rod and an FTTH-specific flexible guide head, this tool is optimised for use in microducts and conduits, even those already occupied by other cables.
Key Features:
- Compact Diameter: 3mm fibreglass rod offers excellent flexibility and tensile strength, ideal for narrow and occupied microducts.
- Flexible Guide Head: FTTH-dedicated 4mm guide head ensures precise navigation through tight spaces.
- Threaded Nozzles: Equipped at both ends for compatibility with various accessories, including pulling eyelets and cable grips.

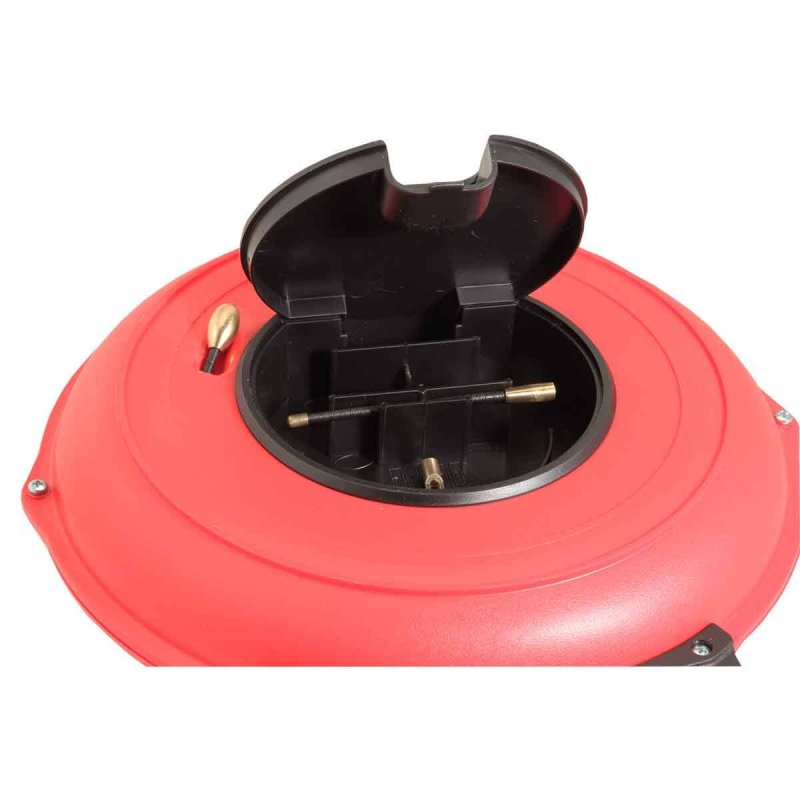

- Durable Casing: Delivered in a rugged casing to protect the rod during transport and deployment.
- Lightweight Design: Weighs only 1.1kg for ease of handling on-site.
Technical Specifications:
- Rod Diameter: 3mm
- Length: 30m
- Weight: 1.1kg
- Dimensions: 300 x 200 x 70mm
Applications:
- FTTH Roll-Outs: Specifically engineered for last-mile fibre optic network installations.
- Occupied Ducts: Effective in microducts already containing cables such as video, service control, or copper wires.
- Telecommunication Projects: Designed for precision and efficiency in high-density cable environments.
Benefits:
- Enhanced Flexibility: Twists and maneuvers easily through complex duct paths, reducing installation time.
- Durability: Fibreglass rod withstands high tensile stress and wear for long-lasting performance.
- Accessory Compatibility: Threaded ends allow for seamless integration with pulling eyelets, cable grips, and other tools.

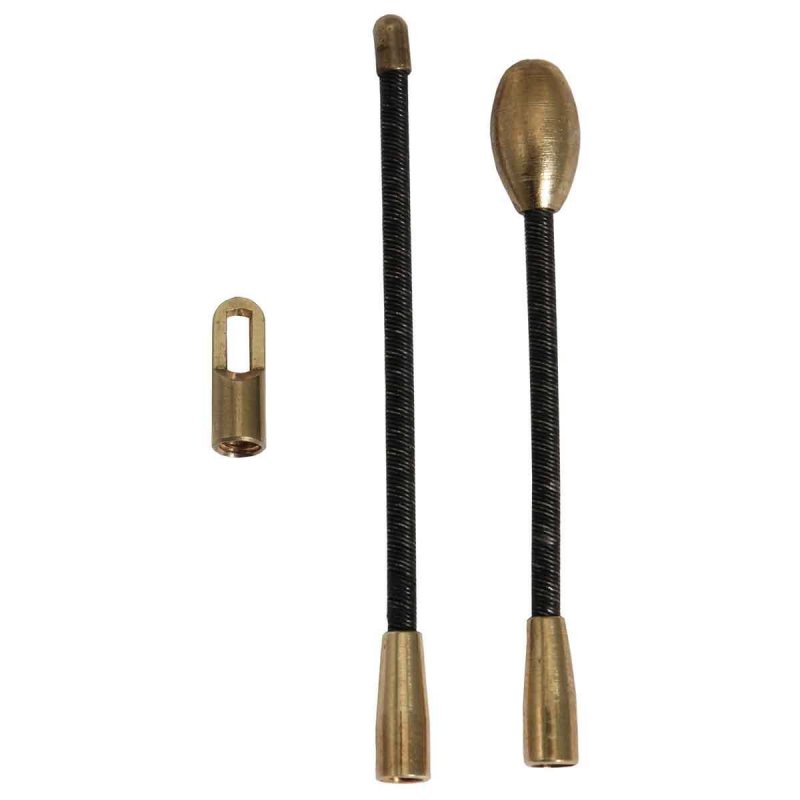

Included Accessories:
- FTTH Flexible guide head (4mm)
- Flexible guide head (10mm)
- Pulling eyelet
Optional Accessories:
- Cable grips for varying cable diameters (Ø4-6mm, Ø6-9mm, Ø9-12mm, Ø12-15mm)
- Flexible guide heads in multiple sizes (Ø7mm, Ø7-10-13mm)
- Repair kits and spare fibreglass rods
The TED® FTTH Microduct Pulling Rod offers unmatched precision, durability, and ease of use, making it an essential tool for fibre optic cable installations.
|
