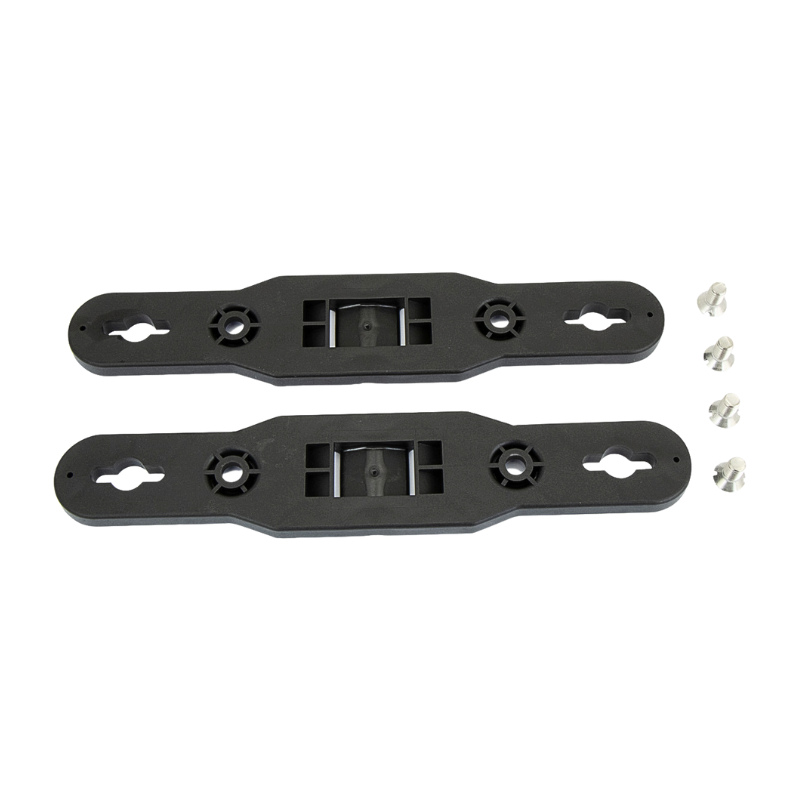

Corning BPEO Fibre Closure BPEO-S1.5-DROP with Support Brackets

Corning BPEO Fibre Closure BPEO-S1.5-DROP.
Product code: 09387
 Call or Request Quote
£100.10 exc VAT
(0)
Product attachments Product attachments

Description

Description:

Corning BPEO Fibre Closure BPEO-S1.5-DROP

The Corning BPEO-S1.5-DROP Fibre Closure is a high-capacity, IP68-rated fibre distribution enclosure designed for FTTH, FTTX, and optical fibre networks. Featuring tool-free access, modular ECAM ports, and flexible splice management, this closure supports up to 288 fusion splices and is ideal for aerial, underground, and façade-mounted installations.

Key Features:

  • IP68-Rated Protection – Waterproof up to 5 metres for 7 days, ensuring long-term durability.
  • High Splice Capacity – Supports 144 standard-density fusion splices or 288 with low-bend-radius fibre.
  • Tool-Free Opening & ClosingQuick installation with a rubber gasket sealing system for secure re-entry.
  • ECAM External Cable Assembly Module – Allows looped and drop cable additions without fibre disruption.
  • Flexible Port Configurations – Includes 1 double port (D18), 2 single ports (S12), and 25 single ports (S7) for various cable types.
  • Integrated Fibre & Tube Organiser – Efficiently manages mid-span feeder cables and fibre routing.
  • Compact & Durable Design – Offers efficient space usage while maintaining high mechanical performance.

Technical Specifications:

  • Sealing Standard: IP68-rated with integrated test valve
  • Operating Temperature: -40°C to +65°C
  • Impact Resistance: 20 joules (IK10)
  • Splice Capacity:
    • 144 fusion splices (standard density)
    • 288 fusion splices (high density, G.657 fibre)
  • Splitter Capacity: 24
  • Port Configurations:
    • 1 Double Port D18 (6-18mm cable range)
    • 2 Single Ports S12 (4-12mm cable range)
    • 25 Single Ports S7 (3-7mm cable range)
  • Mid-Span Entry: Yes
  • Tube Storage Capacity:
    • Microstructure: Up to 288 fibres
    • Loose Tube (1.7mm): Up to 144 fibres
    • Loose Tube (1.4mm): Up to 288 fibres
  • Dimensions: 382mm (L) x 204mm (W) x 120mm (D)
  • Volume: 5.6 litres

Ideal for:

  • FTTH (Fibre-to-the-Home) and high-density fibre networks
  • Aerial, underground, and wall-mounted fibre installations
  • Telecom service providers and ISPs
  • Mid-span fibre splice and distribution applications

Technical characteristics

  • Product model
  • 09387
  • Product code
  • 09387
  • MPN
  • 1216031
