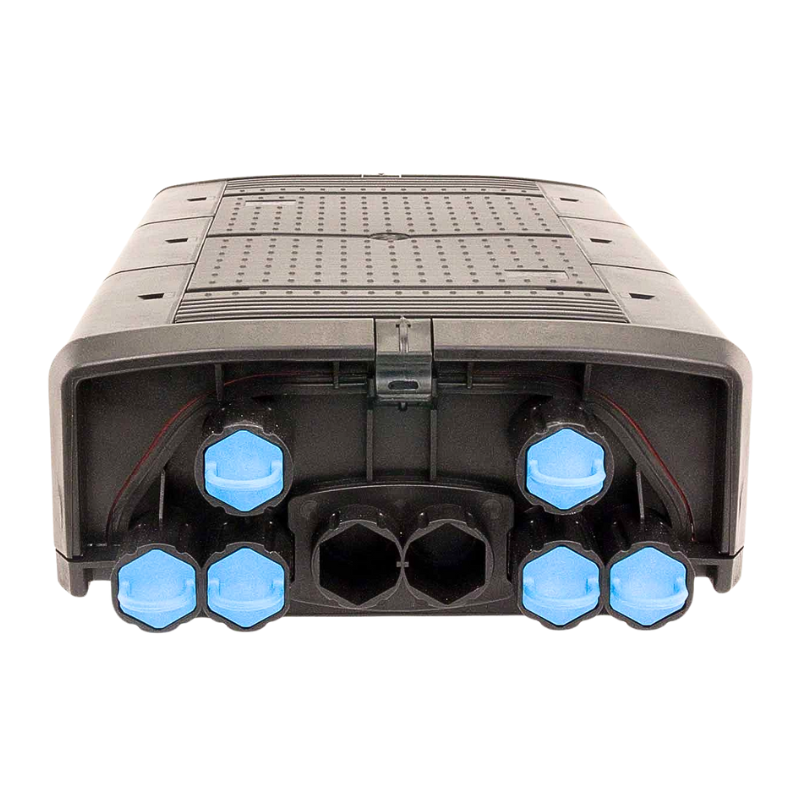

Corning BPEO Fibre Closure BPEO-S2-CDP
The Corning BPEO-S2-CDP Fibre Closure is a high-capacity, IP68-rated splice closure designed for FTTH, FTTX, and optical fibre network deployments. Featuring tool-free access, flexible ECAM ports, and a robust sealing system, this dome-shaped enclosure ensures secure, reliable, and scalable fibre management for aerial, manhole, and underground applications.
Key Features:
- IP68-Rated Protection – Watertight up to 2 metres, ensuring long-term durability in extreme conditions.
- High Splice Capacity – Supports up to 720 fibre splices with a 30-tray capacity for high-density networks.
- Tool-Free Opening & Closing – Quick installation with a rubber gasket sealing system for secure re-entry.
- ECAM External Cable Assembly Module – Allows looped and drop cable additions without fibre disruption.
- Flexible Port Configurations – Includes 1 main oval port (6-18mm) and 8 cable entries for easy network expansion.

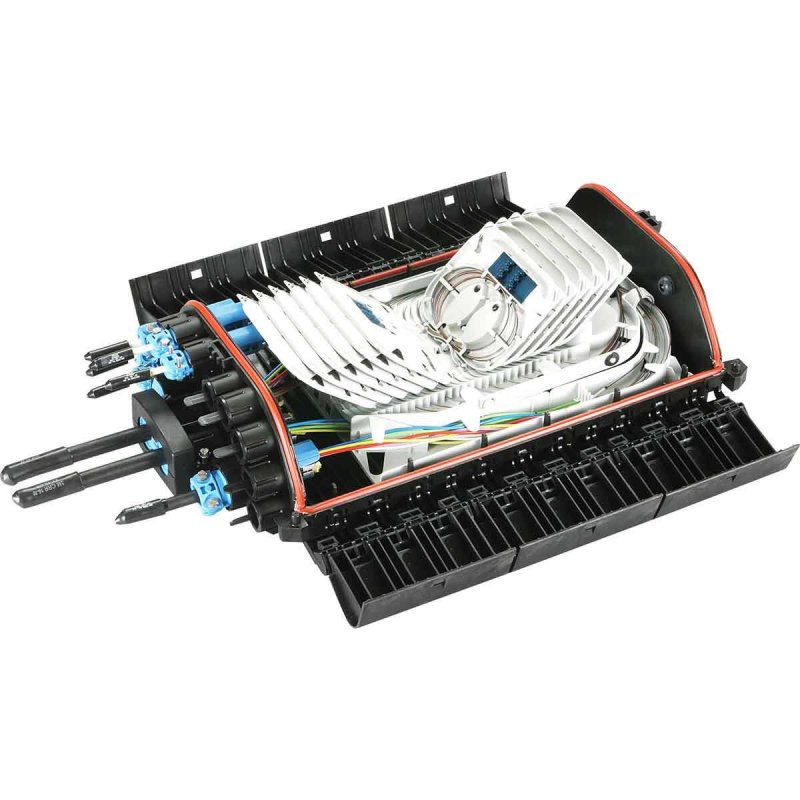

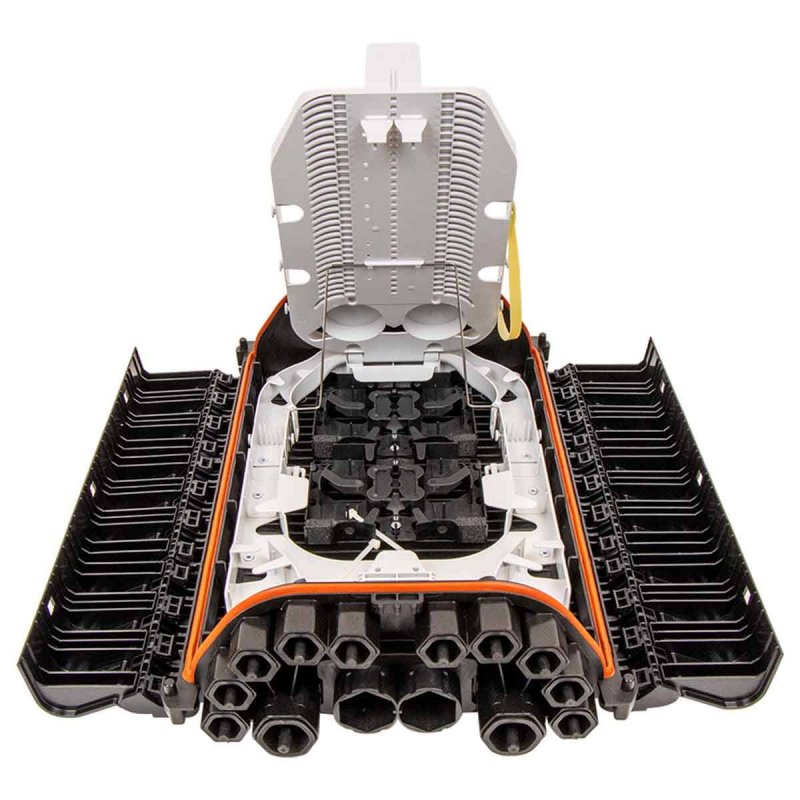

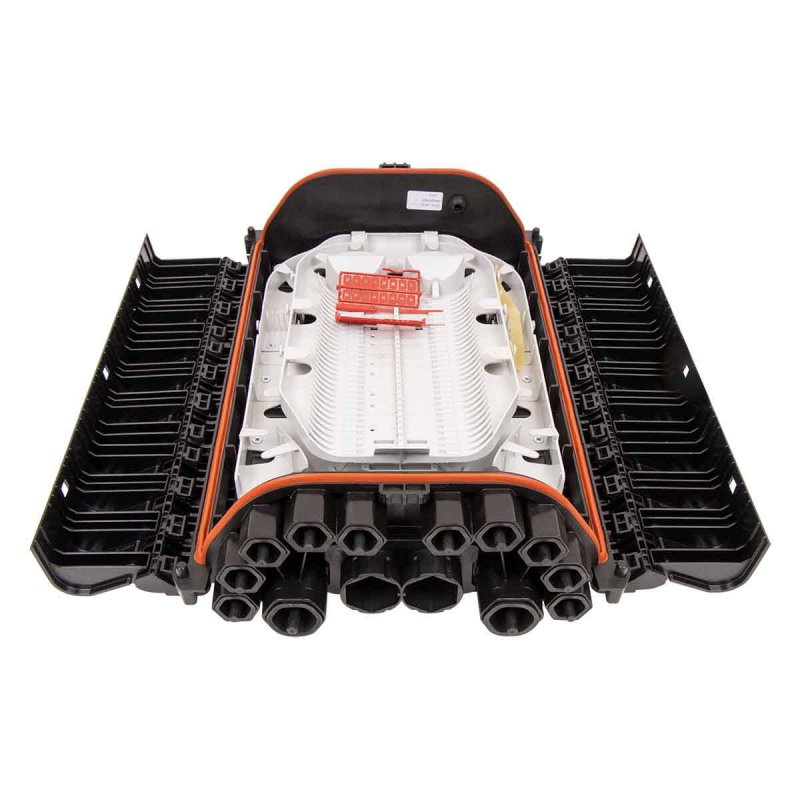

- Integrated Fibre Organiser – Manages fibre and tubes efficiently, supporting single-fibre routing.
- Dome-Shaped, Canister Design – Compact, lightweight, and robust for aerial and underground applications.
Technical Specifications:
- Sealing Standard: IP68-rated with integrated test valve
- Operating Temperature: -40°C to +65°C
- Impact Resistance: High mechanical durability
- Splice Capacity: Up to 720 fibres
- Max Tray Capacity: 30 splice trays
- Main Cable Diameter: 6-18mm
- Cable Entries: 8
- Drop Cable Ports: 6
- Fibre Type: Standard bend radius G652D
- Mounting Type: Aerial, manhole, underground
- Dimensions: 520mm (L) x 341mm (W) x 149mm (D)
- Package Contents: ECAM S18, ECAM D27 (or 2x S18)
Ideal for:
- FTTH (Fibre-to-the-Home) and high-density networks
- Aerial, underground, and manhole fibre installations
- Telecom service providers and ISPs
- Fibre splice and distribution applications
|
