Cable Tie Mounting Base MB3A

The MB3A Cable Tie Mounting Base provides a quick, reliable, and versatile solution for securing cable bundles in electrical, telecom, and appliance installations. Offering both self-adhesive and screw mounting options, this 4-way entry base is ideal for locations where drilling or mechanical fixings are impractical.

Made from high-strength Polyamide 6.6 (PA66), this mount is resistant to wear, impact, and environmental stress – making it a preferred choice for contractors and engineers managing small to medium cable runs.

Key Features:

• 4-way cable tie entry for flexible routing

• Dual fixation method: self-adhesive and screw mounting

• Strong hold for heavier cable bundles

• Compact 19mm x 19mm footprint

• Suitable for telecoms, electrical panels, appliances, and control cabinets

• Fast, tool-free installation with optional screw security

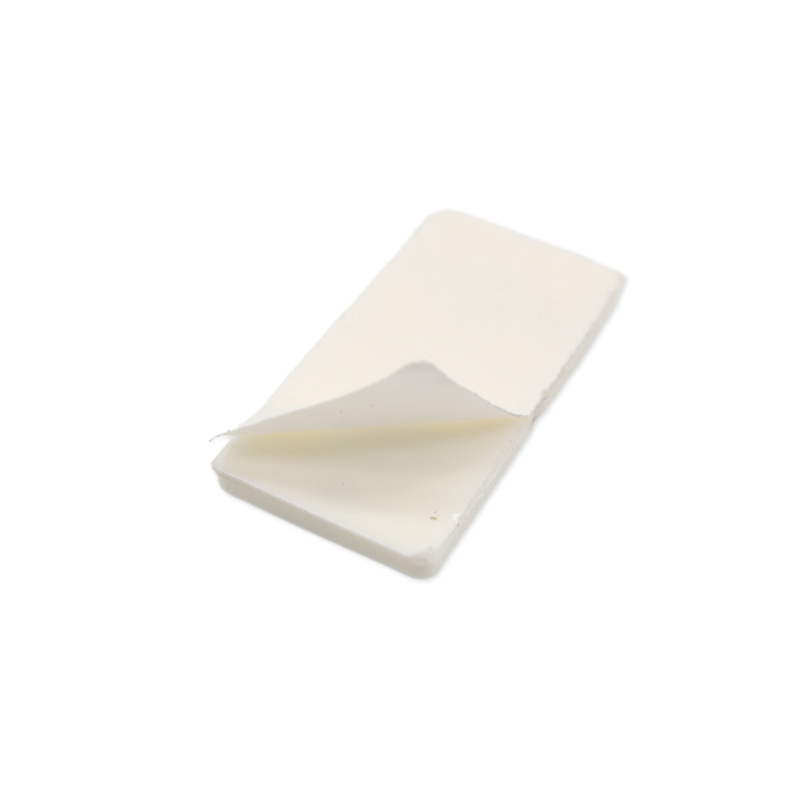

• High-performance adhesive backing

• Compatible with T18 to T30 cable ties

Technical Specifications:

• Product Code: MB3A.NW3P

• Part Description: MB3A-PA66-WH

• Material: Polyamide 6.6 (PA66)

• Colour: White (Natural)

• Mounting Type: Self-adhesive and screw mount

• Dimensions:

  • Length (L): 19.0 mm

  • Width (W): 19.0 mm

  • Height (H): 3.8 mm

• Fixing Hole Diameter (FH): 3.1 mm

• Fixing Hole Centres (F): 13.2 mm

• Strap Width Max (G): 4.1 mm

• Adhesive Thickness (TA): 0.8 mm (nominal)

• Weight per Unit: 0.00089 kg

• Cable Tie Range: T18 – T30

• Pack Quantity: 100 pieces

Applications:

Perfect for use in:

• Control cabinets

• Telecoms and data enclosures

• Domestic and commercial electrical appliances

• Environments where holes, screws, or bolts are not desirable
