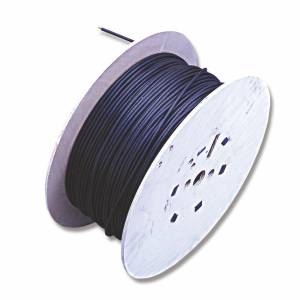

The cable contains four 0.5mm plain solid copper pairs insulated with solid polyethylene and wrapped
with a polyester tape, brass coated steel support strands insulated with PVC, and is sheathed overall
with a medium density black polyethylene sheath.
Product Construction
CONDUCTOR: 0.5mm Plain Annealed Copper Wire (PACW)
DIELECTRIC: Solid High Density Polyethylene
Diameter over Dielectric: 0.89 mm
COLOUR CODE:
Pair 1: Orange/White
Pair 2: Green/Black
Pair 3: Red/Grey
Pair 4: Blue/Brown
CORE WRAP: Polyester Tape
SUPPORT STRAND: 3 x Brass Plated Steel strands, PVC Insulated.
RIPCORD: Nylon
IDENTIFICATION: Manufacturer’s Thread to PD 2379
JACKET/SHEATH:
Black Medium Density Polyethylene
Minimum Thickness: 0.5 mm
Minimum Diameter: 5.3 mm
Target Diameter: 5.4 mm
Maximum Diameter: 5.5 mm
ELECTRICAL PROPERTIES (20°C):
Conductor Resistance: 95 Ω/km Maximum
Mutual Capacitance: 56 nF/km Maximum
Capacitance Unbalance: 300 pF/500m Maximum
Insulation Resistance: 10,000 MΩ/km Minimum
BREAKING LOAD:
Minimum: 1350 Newtons
Maximum: 1550 Newtons |
