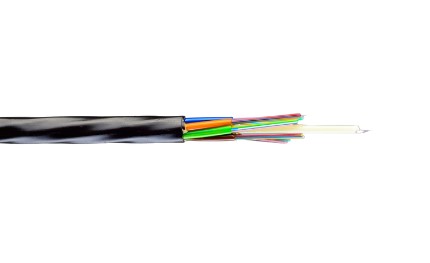

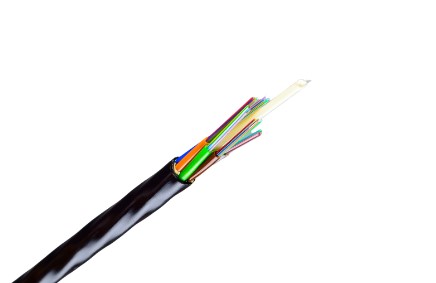

Blown Cable G657A1 12F to 288F SM 250um 12FO Tube

High fibre capacity with an ultra-slim diameter, enables this blown cable to be installed into microducts by network operators with ease. Available in 12FO, 24FO, 48FO, 96FO, 144FO, 288FO.

Product code: F1181-012-F1181-288
(0)
 See invidudual items
Blown Cable G657A1 48F SM 250um 12FO Tube
Product model: F1181-048-1000
 Call or Request Quote
Blown Cable G657A1 96F SM 250um 12FO Tube
Product model: F1181-096-1000
 Call or Request Quote
Blown Cable G657A1 144F SM 250um 12FO Tube
Product model: F1181-144-1000
 Call or Request Quote
Blown Cable G657A1 288F SM 250um 12FO Tube
Product model: F1181-288-1000
 Call or Request Quote
Blown Cable G657A1 12F SM 250um 12FO Tube
Product model: F1181-012-1000
 Call or Request Quote
Blown Cable G657A1 24F SM 250um 12FO Tube
Product model: F1181-024-1000
 Call or Request Quote
Request for quote

Description

Description:



Designed with 200 µm optimised bend loss G.657.A1 single-mode fibres to provide high performance while also protecting against extreme environmental stressors. The cable can also be provided in a 250 µm8 configuration.



Product Features:

  • Optical Fibre containing elements laid up around central strength member
  • HDPE sheath as external protection
  • Suitable for PIA application
  • Water-blocked core interstices
  • Gel filed water blocked loose tubes



Technical Characteristics:

  • Crush resistance: 1000N
  • Torsion: ±360 °
  • Cable cut-off wavelength: ≤ 1260 nm
  • Cable length: 4.0 km ± 5 %

Technical characteristics

  • Product model
  • F1181-012-F1181-288
  • Product code
  • F1181-012-F1181-288
