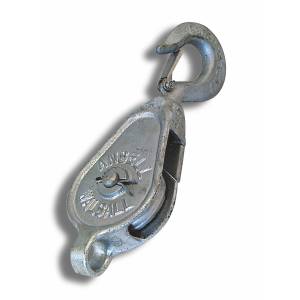

Block Snatch No.1
The Block Snatch No.1 is a compact and lightweight aluminium pulley block, designed for efficient lifting and pulling tasks in telecom, construction, and utility environments. Featuring a 3 3/8” pulley and suitable for ropes up to 16mm in diameter, it is engineered to handle loads up to 454 kg (SWL) with reliability and ease.
Key Features:
-
Lightweight aluminium construction for easy handling on-site
-
Suitable for lifting or pulling operations
-
Pulley diameter: 3 3/8"
-
Accepts rope sizes up to 16mm in diameter
-
Safe Working Load (SWL): 454 kg
-
Snatch design allows easy rope insertion and removal
-
Ideal for utility, telecoms, and rigging applications
Technical Specifications:
-
Material: Aluminium
-
Pulley Diameter: 3 3/8" (approx. 86mm)
-
Max Rope Diameter: 16mm
-
Safe Working Load (SWL): 454 kg
-
Application: Lifting and pulling tasks in cable installation, telecoms, rigging
-
Design: Snatch block with side opening for quick rope placement
